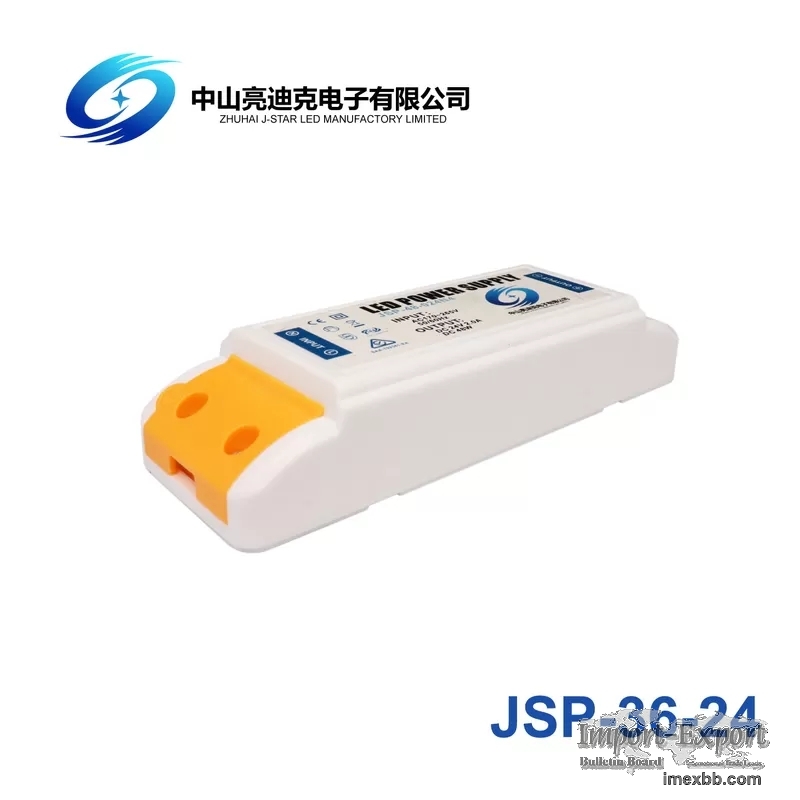

Auto Recovery 36W 24V LED Strip Light Power Supply IP33 Waterproof

Auto Recovery 36W 24V LED Strip Light Power Supply IP33 Waterproof
Led Tape Light Power Supply SAA Certified 36W 24V For Led Signs



Protection:
Open circuit Over load Short circuit Over temperature
Safety Standard:
Safety: IEC61347-1, IEC61347-2-13;
Harmonic: IEC61000-3-2
EMI: IEC55015;
EMS: IEC61547

Specification details:


Model JSP-24036
Rated load power 36W
Output Voltage 24V
Output Current 1.5A
Input Voltage range 100-240V
Withstand 2000V
PFC >0.7
Dimmable No
Dimension(mm) L140xW45xH28mm
Efficiency 86%
Frequency 50/60HZ
Ripple 300mV Max
Electronic wire request Teminal blocks
Over loading protection 115%-125% hiccup mode, auto-recovery
Over heat protection <85°C hiccup mode, auto-recovery
Over voltage protection 115%-125% hiccup mode, auto-recovery
Setup, rise, hold up time 200ms, 100ms, 20ms
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity -10℃~+60℃(Refer to output load derating
curve),indoor or dry
Store temperature and humidity -20℃~+85℃, and dry condition
Certification SAA CE ROHS
Warranty 3 years
Input plug available AUS PLUG, EU PLUG, US PLUG

1. If without specia explanation, all specifications are measured at an input of
220VAC, rated
load, ambient temperature of 25 ° C .
2. Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals
are
connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth.


FAQ:
Q1. Can I have a sample order for products?
A: Sure, we welcome sample order to test and check quality. Mixed samples also
acceptable.


Q2. What about the lead time?
A: Samples needs 1-3 days, mass production time needs 1-2 weeks

Q3. Do you have any MOQ limit for led light order?
A: 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to precede an order for products?
A: 1, Let us know your requirements or application.
2, we quote according to your requirements or our suggestions.
3, Customer confirms the samples and places deposit for formal order.
4, Production arranged.
