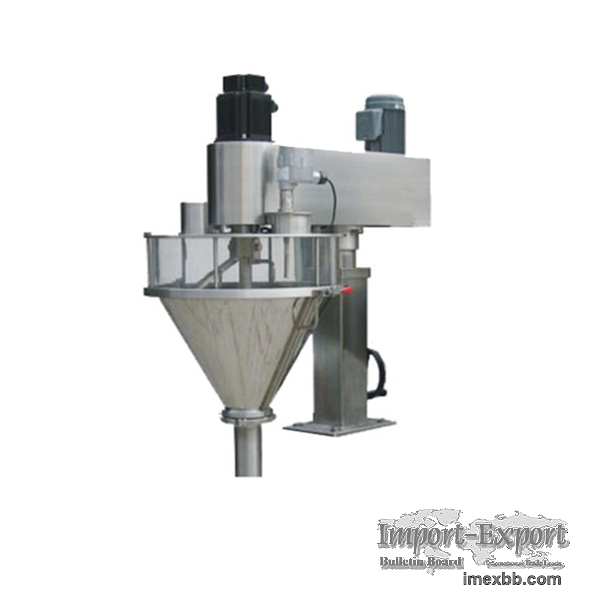

Auger Filler Parts

The screw measuring machine is metered by a screw feeder, that is, the cavity
of the screw groove is used as a measuring container, and in each dispensing
cycle, the speed of the screw rotation is controlled, and the physical quantity
of each rotation is controlled, thereby Achieve the purpose of measurement.

Product Description of Auger Filler Parts
The machine is suitable for milk powder, coffee, yeast, white sugar, cotton
sugar, glucose, monosodium glutamate, solid beverages, powdered additives,
feed. The quantitative weighing of solid medicine, toner, talcum powder, dyes,
flavors and fragrances, veterinary drugs, pesticides, washing powder, powders,
and fine particles can be used for bag machines, horizontal machines and
vertical machines.

Auger Filler Principle
This auger filler machine is mainly used with a matching feeder, working
platform and other supporting facilities to form complete filling equipment.
Users can provide detailed information to our professionals according to their
own needs so that Neil Machinery can choose the most suitable for you. Screw
measuring machine, the screw measuring machine can be combined with auger
conveyor, powder mixer machine and conveying equipment to form a complete
filling production line.

Application of Auger Filler Parts
Milk powder, coffee powder

Foodstuff, grain, protein powder

Medicinal

Chicken powder

Cosmetic Pigment

Chemical powder and detergent powder. etc

Other industries

Main Features of Auger Filler Parts
（1）The whole machine is all stainless steel, anti-corrosion; in line with
national "QS" and "GMP" certification requirements
（2）The filling is driven by a servo motor, and the agitation adopts a Taiwan
maintenance-free gear motor with stable performance and high packaging
precision.
（3）Fully sealed, stainless steel and plexiglass bin combination, open door
bin, removable and washable, easy to replace spiral
（4）Connected to the vertical machine, bag machine, horizontal packaging
machine, various packaging parameters can be stored, up to 10 recipes can be
stored
（5）It can be adapted to various packaging specifications and packaging of
fine particles of powder by changing the screw attachment.

Technical Data of Auger Filler Parts
（Technical Data）
Model NE-N1-25G NE-N1-25G
Packing weight 1-200g 1-500g(Enlarged size) 1-200g 1-500g(Enlarged size)
Packing accuracy <100g,≤±2%;100-500g,≤±1% <100g,≤±2%;100-
500g,≤±1%
Filling speed 40-120/min 40-120/min
Power supply 3P AC208-415V 50/60Hz 3P AC208-415V 50/60Hz
Power 1.2KW 1.7KW(Enlarged size) 1.2KW 1.7KW(Enlarged size)
Total weight 130kg 140kg
Dimension 860*460*880mm 860*520*880mm
Hopper volume Quick disconnecting 25L(Enlarged size 35L) Split hopper
25L(Enlarged size 35L)

Shanghai Niel Machinery Manufacturing Co., Ltd. is a professional manufacturer
of bulk powder handling systems, we provide bulk powder handling equipment,
vacuum conveyors, used auger filler and etc. Want to know more? Please contact
us.

Minimum Order: 1 sets
