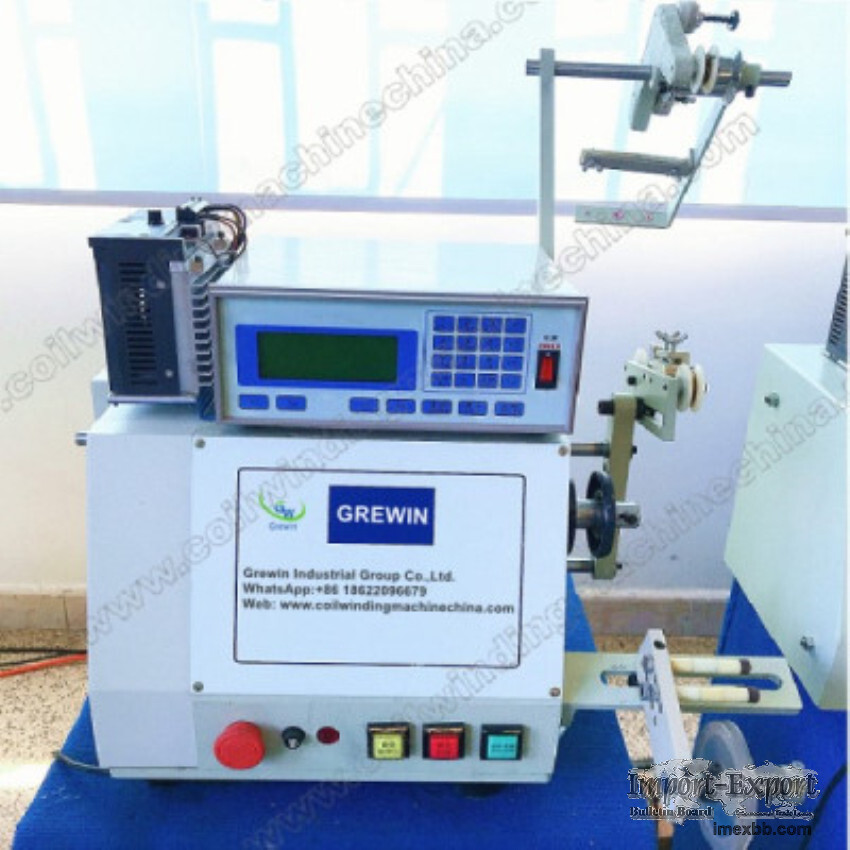

ATWGW22-1 Speaker Voice coil winding machine

Specifications:
Spindle number:1
Wire size range:0.3-2.0mm
Loop diameter:240mm
The max wire spacing:9.99mm
Winder width:180mm
Max speed:0-2200 RPM
Spindle motor:Three Phase motor+AC Drives
Winder motor:Stepping motor
Input power:220V  50HZ/60HZ
Machine Size:1000×520×430mm
Package size:1090×620×620mm
Net weight:98kg
Gross weight:143kg

Features:
Increase the base model,
The use of single spindle winding side
Strong support tail stock,
Thick Wire Winding Machine with a thick wire dedicated winding structure,
The use of super torque output, can easily finish all kinds of thick wire
bobbin coil winding.
Speaker Voice coil winding machine design of 32 bit controller chip, It’ll
be faster and higher reliability.
In Chinese and English display,easy to operation,winding data
retention after power failure, not to discarded products.
All the parts for Speaker Voice coil winding machine are imported
prats,such as:Japan Bearing (NSK、NTN),Japan BANDO belt ，U.S.A GATES belt
，Taiwan Ball screw (TBI)，Taiwan AC Drive and so on.
Various types of thick wire transformer,large coil product and so on.


Advantages：
Thick wire tension design for Speaker Voice coil winding machine , easy to
deal with all kinds of thick wire products.
Heavy frame structure, winding process is more stable and reliable.
Customized tail stock design, easy operation .
Warranty period 1 year
The technicians are experienced

APPLICATION:
Toroid Winding Machine is the best suited to toroidal inductor, toroidal
transformers,toroidal current transformers,toroidal coil, toroid choke
coil, power inductors,UPS inductor,converter inductor and heavy toroidal
core etc.

PRACTICAL APPLICATION :
TRAINNING CUSTOMER TO OPERATE WINDING MA , CHNE :
1.All service engineers with 10 ye , ars experience are gotten special technol
, ogy training, who can deal with various bre , akdown problem.
2.Guide the user to use a , ccurately and how to maintain the Eight Spindle
Motor Coil Winding Machine .
Provide free consultation about productio , n process technology of electronic
 Eight Spindle Motor Coil Winding Machine .
3.In order to guarantee the machine use , d normally, we'd have training on ho
, w to operate, use and maintain our product

Minimum Order: 1 pieces
