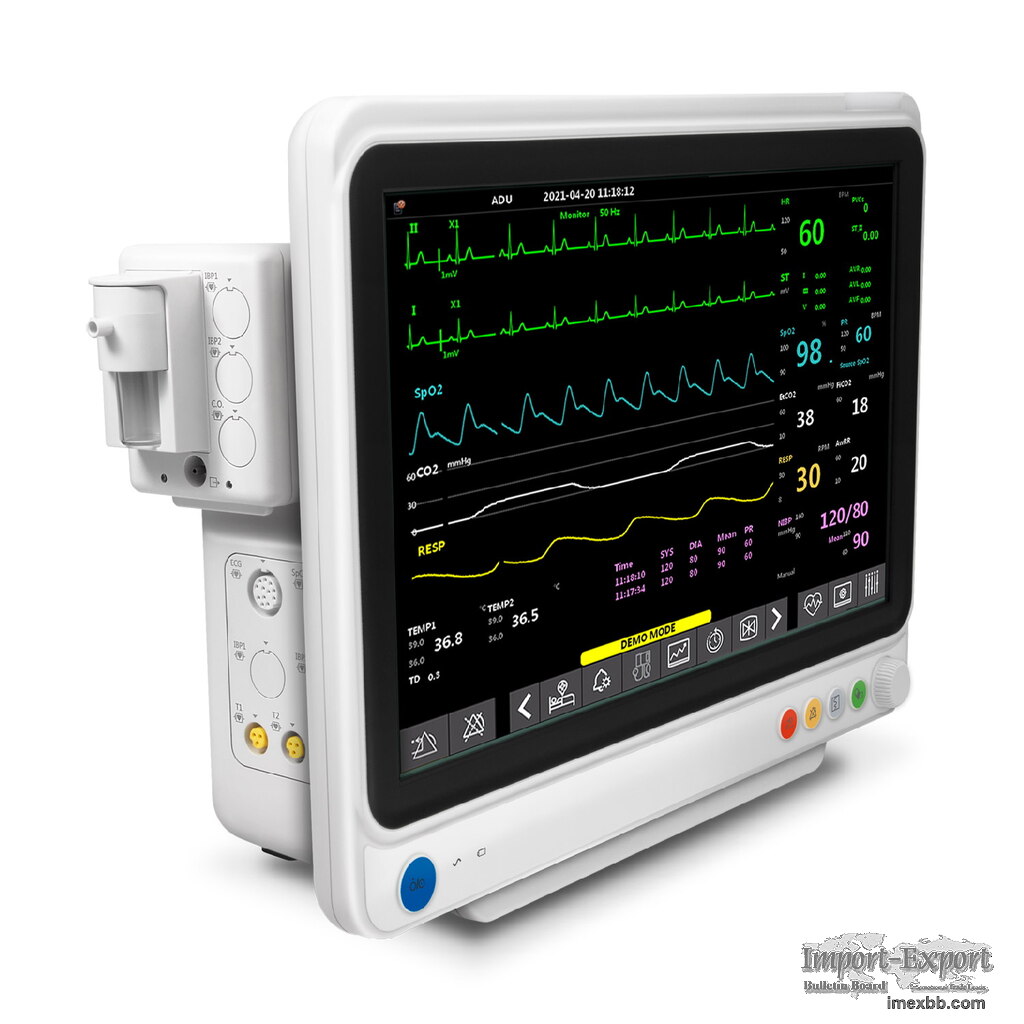

Athos

The Athos series patient monitor series are designed to meet daily clinical
needs and seamlessly integrate into the hospi-
tal workflow. A variety of monitor models have more and more accurate
practical clinical application values. In acute care,
patient monitors must be reliable, easy to use, have advanced parameters,
and allow access to data when needed. When
transporting patients, the equipment should be easy to carry. The Athos
series of patient monitors are lightweight,
powerful, and intuitive in user interface. They are the best choice for
acute, in- and out-of-hospital transfers.

Features :
Monitor should be modular in design, compact and suitable for
adult, pediatric and neonates.

Standard parameters: SpO2, 12leads ECG, PR, HR, RESP, NIBP,2*TEMP.

Optional parameters: EtCO2, 2*IBP, CO.

12.1inches/15.6inches colour LED screen with touch screen and /or rotator
knob.

Upgradable module is interchangeable (plug and play type).

Capable to visualize 6 or more waveform.

Support colour coding for different waveform.

ST segment analysis with ST trend with continuous display of
ST value on screen.

Multiple screen layout to view big font size in numeric and waveform.

Trending facilities for upto 360 hours of both graphical &
numerical along with eventreview facility for all parame-
ters and full waveform disclosure facility.

Different visual alarm with colour coding and audible
alarms for variousparameters with three levels of volume
adjustment.

Support HL7 protocol to access the central workstation
Energy-saving, low-power design, extending battery life
Configure noise reduction fan to ensure a quieter and
cleaner environment Arrhythmia detection and analysis
in various leads.

A inbuilt battery backup of 4 hours
Specifications :
SpO2 :
SPO2 Range 0~100%
SPO2 Accuracy 70~100%, ±2% <70%, Undefined
PI Range 0~20%
PVI Range 0.001%
PR Range 25-250 bpm
PR Accuracy ±2bpm or ±2%
ECG :
ECG Range 0.15mV~5.5mV
ECG Resolution 2.36uV/LSB
HR Range 15~300 bpm(adult)
15~250 bpm(child/neonate)
HR Accuracy ±1bpm
RR Range 0~120 rpm
RR Accuracy 15~120rpm : ±2rpm or ±2% <15rpm : Undefined
TEMP :
Range 0-50°C
Accuracy ±1°C
Resolution 0.1°C
NIBP :
Pressure Range 0 ~ 300mmHg
Pressure Accuracy ±2mmHg or ±1% of reading (take thelarger value)
Resolution 1mmHg
SYS Range Adult : 40-270mmHg Pediatric : 40-200mmHg Neonate : 40-130mmHg
DIA Range Adult :10-210mmHg Pediatric :10-162mmHg Neonate :10-90mmHg
Mean Range Adult : 20-230mmHg Pediatric : 20-170mmHg Neonate : 20-100mmHg
Accuracy The mean deviation <±5mmHg The standard deviation <8mmHg
IBP(optionel) :
Pressure Range -50 ~ 350 mmHg
Accuracy ±3mmHg or ±1% of reading
PR Range 25-250bpm
PR Accuracy ±2 bpm or ±2% (whichever is greater)
CO(optionel) :
Range 0.20 ~ 20.00L/Min
Accuracy ±5%
EtCO2(optionel) :
CO2 Range 0~20.0 vol%
CO2 Accuracy 0~12 vol% : ±(0.2 vol% +2% of reading) 12~20vol% : ±(0.2 vol% +
6% of reading)
AwRR Range 0~150 rpm
AwRR Accuracy mainstream : 0~150rpm, ±1rpm Sidestream:0~69 rpm, ±1rpm 70~150
rpm, Undefined

Minimum Order: 1 pieces
