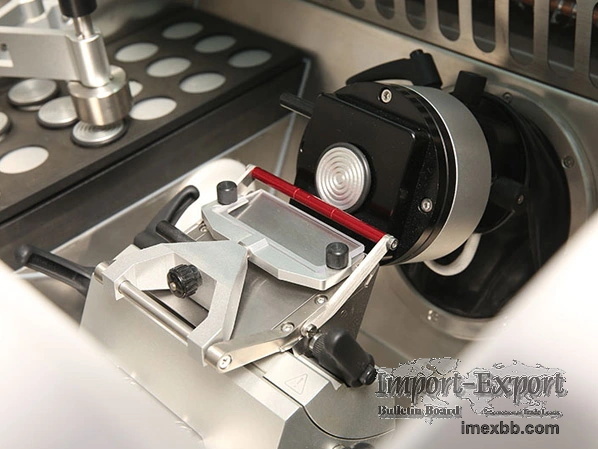

AST560 Semi-automatic Cryostat Microtome with Touch Screen

Experience effortless frozen tissue sectioning with our Semi-automatic Cryostat
Microtome featuring a user-friendly touch screen interface. This innovative
instrument combines precision and convenience, ensuring consistent, high-
quality sections for rapid pathological assessments and research applications.

Description of AST560 Semi-automatic Microtome Cryostat with Touch Screen
It is designed overall engineering and ergonomic concepts. All the components
are processed by computer numerical control.

Retraction function prevents specimen damage from blade.

Total thickness calculation.

Low temperature refrigeration system with environment friendly refrigerant
R404.

Adopt UV sterilize for 30 minutes every time.

Peltier specimen clamp refrigeration can be turn On or Off manually.

Two defrosting methods: manual and automatic.

The high prevision unit is enclosed outside the cryostat chamber to prevent it
from thermal expansion and contraction, and keeps minimum maintenance
requirement.

Artificial intelligent interface is easy to learn and operate.

Touch Screen and display all information including thickness, thickness sum,
controlling time, temperature, time on/off and so on.

Sleep Function: after activating this function, the temperature in cryostat
chamber can be kept between -1℃ and -10℃; after stopping this function, the
temperature in freeze chamber will rise to working temperature within 30
minutes.

Control panel with locking function could avoid faulty operation.

Handwheel locking function.

Wide freezing shelf can load 17 specimen cassettes simultaneously, and two of
them are equipped with peltier to meet different temperatures.

Specification of AST560 Semi-automatic Microtome Cryostat with Touch Screen
Environment requirement Temperature Range +15℃～+30℃
Air Humidity ≤60%
Working pressure （86～106）kPa
Nominal Voltage 220～240V AC/100～120V AC
Normal Frequency 50/60 Hz
Powe ≤1000VA
Fuse 8A/20A
Safe Classify Classify I - Type B
Lowest freeze chamber Temperature -35±2℃
Lowest freeze shelf Temperature -45±5℃
Lowest temperature of peltier unit on freeze shelf -55±5℃
Lowest temperature of peltier unit on specimen clamp -50±5℃(Working time
of peltier: 15 minutes)
Electric coarse feed Slow: 300µm/s±30µm/s
Rapid: 900µm/s±30µm/s
Section thickness range 0 to 100µm
0 to 3µm, in 0.5µm increments
3 to 10µm, in 1µm increments
10 to 20µm, in 2µm increments
20 to 100µm, in 5µm increments
Trimming thickness range 0 to 600µm
0 to 50µm, in 5µm increments
50 to 100µm, in 10µm increments
100 to 600µm, in 50µm increments
Retraction 0~80µm, in 5µm increments
Specimen feed 24mm ±0.2mm
Vertical stroke 54mm±1mm
Specimen Max 35×35mm
Repositioning of blade holder base(left-right) 50±1mm
Motorize cutting speed 75～230mm/s ± 10%
Dimension Width 715mm
Length 765mm
Height 1230mm
Weight About 130kgs

For more information about cryostat microtome price and histopathology
apparatus, please feel free to contact us!
