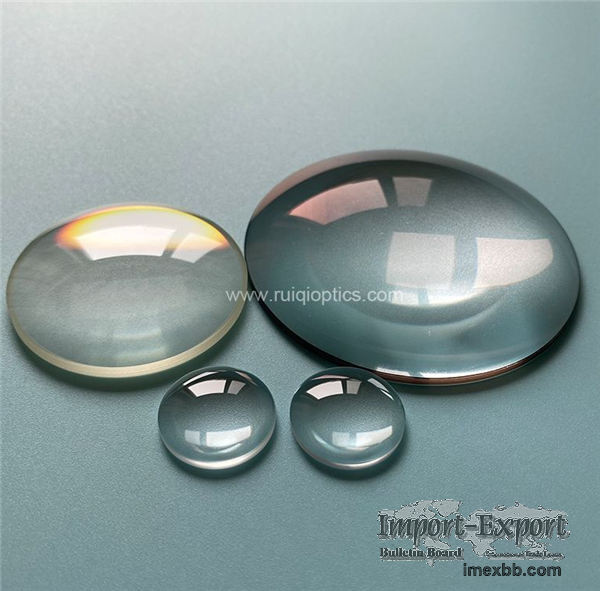

Aspheric Plano Convex Lens

Aspheric lens is an optical element which have a complex radius of curve, at
least one surface is not spherical. The radius of curve is gradually change
from center to edge, there have a specified formular of aspheric lens which
designed by customers. Compare with spherical lens, aspheric lens reduces
or minimizes spherical aberrations, for example, astigmatism, field
curvature, and distortion.
Substrate  K9, Fused silica, Sapphire, CaF2,Silicon, Germanium,Znse, ZnS
optical glass as choice
size 5-300mm
Dimension Tolerance +0/-0.1mm
Focal Length Tolerance +/-1%
Surface Quality 60/40-10/5 as request
Surface Flateness lambda/4-lambda/10
CA >90%
Centration <3'
Chamfer <0.2*45degree
Painting Black Edges as customer demand, and Mounted as request
Coating AR,BBAR,Metal Coating(Silver, Gold,Aluminum), Dielectric
