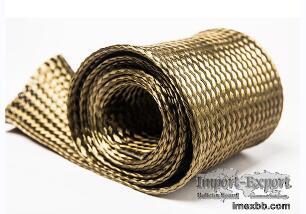

asalt Sleeve

QIAN-ZE basalt sleeve is specialized in protecting wires, cables, hoses, oil
lines from extreme heat conditions and electric insulation performance in a
flexible way, which are widely used in iron metallurgy industry, industrial
furnaces, aerospace, nuclear power, etc. The braided basalt fiber tape products
are the ultimate options for extreme heat conditions which is also easy to
install and cut and will provide years of abrasion protection.
Good thermal insulation and fire resistant performance make QIAN-ZE basalt
sleeve withstand continuous exposure to 760℃（1400℉), providing a
500℃（932℉) increase in temperature protection over fiberglass products.

Quick Reference of Basalt Sleeve
Materials Basalt Fiber
Recommended Operating Temperature
Continuous Exposure: 760℃（1400℉)

Size Range ID: 10mm-100mm(3/8"-4")(Larger sizes can be customized)
Color Nature
Typical Industries Transportation (Aerospace, Auto, Locomotive, Heavy
Equipment)
Metals, Iron & Steel
Hose Fabrication
Oil & Gas
Application Hose and Cable Heat Protection
Water/Oil Proof
Abrasion Protection
Electric Insulation

Specification of Basalt Sleeve
Basalt Sleeve
XM Part No. Inner Diameter Wall Thickness Roll Length
mm inch mm inch m/r
XM-BP-10 10 3/8 0.6 0.024 100
XM-BP-12 12 1/2 0.6 0.024 100
XM-BP-15 15 5/8 0.6 0.024 100
XM-BP-20 20 3/4 0.7 0.028 100
XM-BP-25 25 1 0.7 0.028 50
XM-BP-30 30 1-1/8 0.8 0.031 50
XM-BP-35 35 1-3/8 0.8 0.031 50
XM-BP-40 40 1-5/8 0.8 0.031 50
XM-BP-45 45 1-3/4 0.9 0.035 25
XM-BP-50 50 2 0.9 0.035 25
XM-BP-55 55 2-1/8 0.9 0.035 25
XM-BP-60 60 2-3/8 1.0 0.039 25
XM-BP-65 65 2-1/2 1.0 0.039 25
XM-BP-70 70 2-3/4 1.1 0.043 25
XM-BP-75 75 3 1.1 0.043 25
XM-BP-80 80 3-1/4 1.1 0.043 25
XM-BP-85 85 3-3/8 1.2 0.047 25
XM-BP-90 90 3-1/2 1.2 0.047 25
XM-BP-100 100 4 1.2 0.047 25
