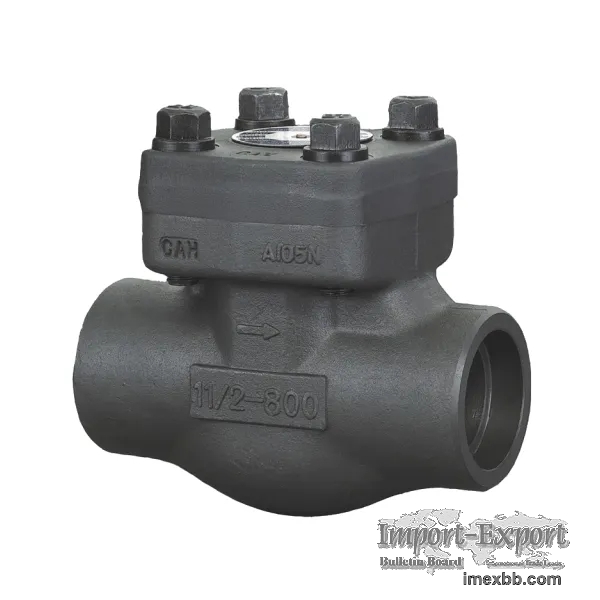

API 602 Piston Check Valve

We Provide Forged Piston Check Valves, 1-1/2 Inch, 800 LB, API 602, ASME B16.34,
Bolted Bonnet, Regular Bore, ASTM A105N, Socket Weld End, and Piston Type.

800LB Forged Piston Check Valve, API 602, 1-1/2INCH, 800LB, SW, A105 Body, Trim 8

Valve Description:
API 602 Forged Piston Check Valve
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet
Nominal size: 1-1/2 Inch
Nominal class: 800 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: /
Body Material: ASTM A105N
Trim Material: 1Cr13+STL, No.8
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Fully guided solid disc, Piston Type (Swing type available)

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: 800 - 2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃

Minimum Order: 1 sets
