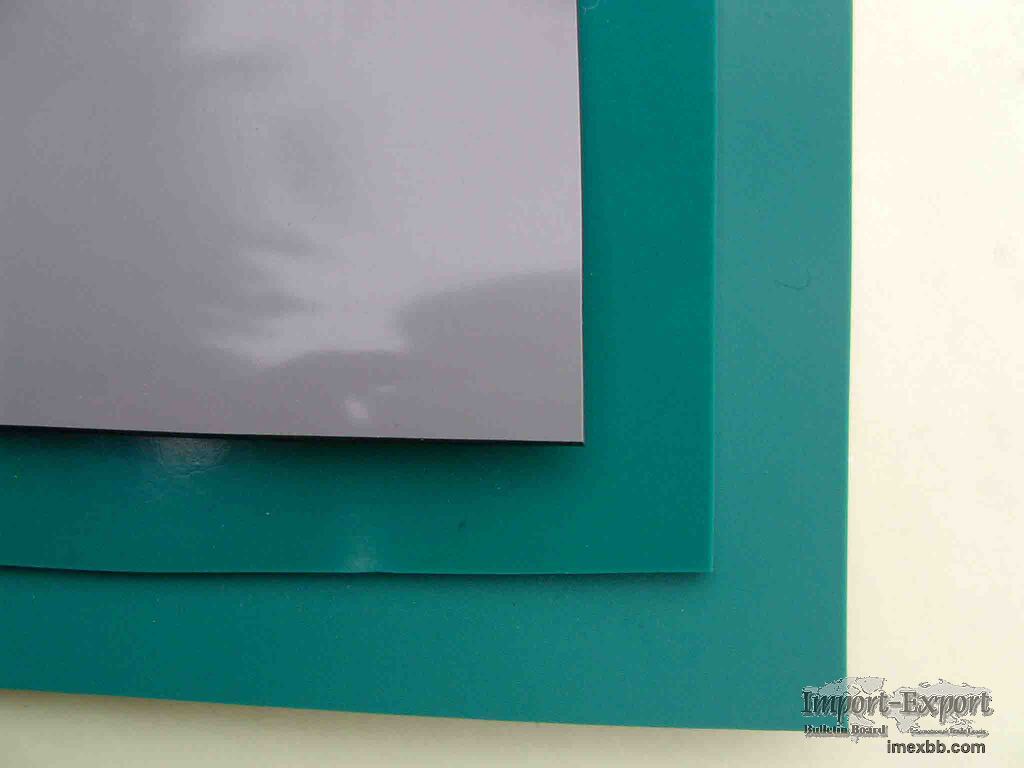

Antistatic Rubber Sheet, ESD Rubber Sheet

Antistatic Rubber Sheet, ESD Rubber Sheet


Description: the antistatic rubber sheet, ESD rubber sheet are made by drum
vulcanizer(ROTOCURE) with high quality nitrile-butadiene rubber(NBR), special
prescription and produce technology with best performance of antistatic, ESD
Rubber Sheet also named antistatic rubber sheet, it is a logogram of Electro-
Static Discharge(ESD) rubber sheet under moderate hardness and high tensile
strength, no smell and good abrasion resistance, oil resistant and elasticity,
working under the middling pressure status at the temperature of -35°C -
+100°C in air. Apply for the industrial of electronic, textile, printing and
dyeing and other place with same or higher request.



Specifications:

mat , erial: NBR Rubber

color: green/black, blue/black, grey/black, black/black

surface: shiny/smooth or sand/smooth

top: 107-109ohm

bottom: 103-105ohm

attenuation time of electrostatic pressure: 0.1S

tensile strength: 6-8Mpa

hardness: 70+/-5shore A

elongation: 300%

density: 1.4g/cm3

working temperature: -35°C - +100°C

thickness: 2-3mm

width: 0.6, 0.7, 0.8, 0.9, 1.0, 1.1, 1.2mm

length: 10-20m

OEM & customized size are agreed

packing in rolls, cartons and pallets

***when you enquiry, pls confirm the color, size and quantity***

Minimum Order: 1 pieces
