Anti Corrosion LoRaWAN Energy Meter LCD Display Smart Energy Meter IoT

PRODUCT DESCRIPTION


Lorawan Wireless Single Phase Smart Electric Energy Power Meter LCD Display IoT
Insulation Corrosion Resistance

Product Overview

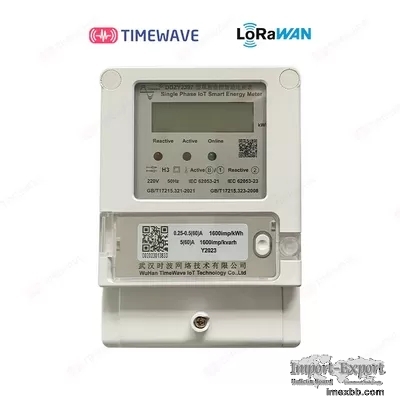

DDZY2397 single-phase charge control intelligent electric energy meter is a fully
digital intelligent electric energy meter developed
by our company. Adopt SOC high integration chip. In addition to the active electric
energy metering function, it also has a variety
of functions such as online power display, intelligent power theft prevention,
overload control, remote centralized meter reading, etc.
The data is transmitted to the corresponding platform through
LoRaWAN/CAT1/Bluetooth wireless network. It has the characteristics
of high precision, low power consumption and good stability, and can be widely used
in the measurement of single-phase AC power
in urban, rural or factory enterprises.

Highlights:
1. Metering of positive and negative active electric energy. The electric energy
shall be accumulated and stored separately for tip, peak,
flat, valley and other periods and the total electric energy. It can store and
display various electric quantities in the last 12 months.
2. It can measure, store and display the current voltage, current, power, power
factor, frequency and other operating parameters and
status of the electric energy meter. It has overload protection function.
3. There are two sets of rates (tip, peak, flat and valley) and time periods that
can be programmed at will, and another set of rates
and time periods can be used at the set time point. At least 2 time zones can
be set for each set of rate periods throughout the year.
At least 14 time periods can be set within 24 hours; The minimum interval
between periods is 15 minutes. The time period can be
set across zero points..
4. It has the functions of event recording such as zero clearing, programming,
timing, power failure, switching on and switching off.
5. Remote power off and transmission function: send power off command through RS485
and other communication interfaces to
cut off the user's load circuit. Or send the power transmission command to
connect the user load circuit.
6. Active upload/two-way transparent transmission function: actively transmit data
to the corresponding platform through LoRaWAN

wireless network. The default interval is 4 hours(settable).
