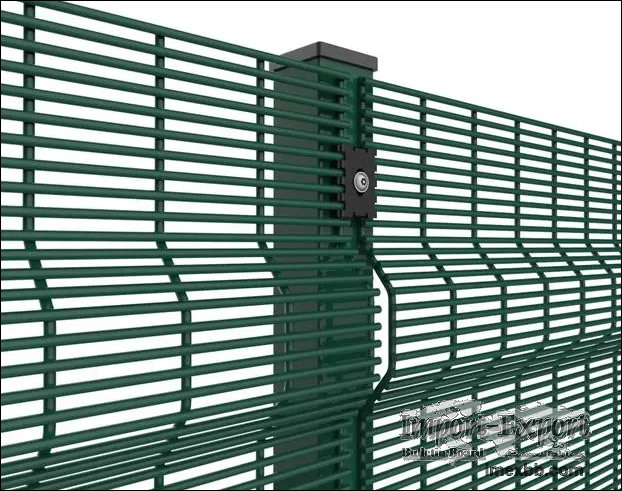

Anti-climb 358 Fence Mesh Panels

358 Security Mesh Fence Portable Panels and Post Galvanized and Powder Coated
Frishine supplies high quality 358 Security Mesh Panel Fencing, featuring
maximum security and anti-climb anti cutting design, in various specifications
and finishes. 358 Mesh can be supplied in portable panels for high security
temp and permanent fencing uses.

358 Mesh Panel Specifications
Height: Our standard fence panel height exceeds 8 feet (2.5 meters), providing
substantial barrier against intrusion.
Length: The panels are available in a variety of lengths, to meet the specific
fencing project.
Common lengths are 8, 10, and 12 feet.
Wire Gauge: Standard wire gauge of 6 (4.8 mm), ideal for a sturdy and reliable
fencing needs.
Opening Size: The mesh opening measures precisely 3 inches x 0.5 inches (76.2
mm x 12.7 mm), a size carefully designed to prevent climbing and cutting.
Wire Breaking Load: The wire breaking load is a crucial specification for the
358 Security Mesh Panel, indicating its strength and resistance against cutting
or tampering. For a wire gauge of 6 (4.8 mm), the breaking load typically
ranges from 1,200 to 1,400 pounds-force (lbf), or approximately 5,400 to 6,200
Newtons (N). This ensures the fence’s durability and its ability to withstand
considerable force without failing, making it challenging to climb or breach.
Weld-shear Strength: The weld-shear strength of Security Mesh Panel, typically
ranging from 500 to 750 pounds-force (lbf) or about 2,224 to 3,336 Newtons (N),
features the panel’s durability and capacity to uphold structural integrity
under stress. This metric signifies our dedication to producing robust fencing
solutions, with each weld point reinforcing the fence’s overall strength and
security, thus preventing joint failures under physical duress.
Galvanizing: Our 358 mesh panels are heavily galvanized with zinc coating
process against corrosion, ensuring long-lasting durability in uses. This
protective coating is applied at a common rate of 1.2 oz per square foot
(oz/ft²) or approximately 366 grams per square meter (g/m²), providing optimal
protection against the elements. Hot dipped zinc coating extends the lifespan
of our fence panels.
Polyester Coating: For additional durability and decorative effect, a polyester
coating of specific microns is applied, typically in dark green or black.
Post Specifications
Height and Gauge: The posts supporting our 358 panels are higher than fence
panels to ensure stability, with gauges designed for structural integrity. Our
posts typically range from 9 to 12 feet (2.7 to 3.6 meters) , available in
gauges of 8 or 9 (4.0 mm or 3.5 mm).
Dimensions: Posts are available in various dimensions to match the height and
security requirements of the fence installation. Fence posts for 358 panels,
common sizes 2″x2″, 2.5″x2.5″, or 3″x3″ (50mmx50mm, 63mmx63mm, or
75mmx75mm).
Weld-shear Strength: Matching the panels in durability, the posts feature a
high weld-shear strength, typically measures between 500 to 750 pounds-force
(lbf) or approximately 2,224 to 3,336 Newtons (N), reinforcing the security of
the installation.
Galvanization and Coating: Posts are also galvanized and polyester-coated,
matching the fence panels for corrosion resistance and visual consistency. The
steel posts are galvanized at a rate of 1.2 oz per square foot (366 g/m²) and
are coated with polyester to match the color coated fence panels. The polyester
coating thickness is commonly around 100 microns.
Upper Arm Accessories: We provide upper arm accessories angled at 45 degrees,
designed for the attachment of 500 mm diameter razor barbed wire. These
accessories, like the wire and posts, are galvanized and coated with polyester.
This added fencing top enhances perimeter security.
High security 358 mesh prison fence with curved panels galvanized and powder
coated
358 Security Mesh Panel, also known as the Anti-climb Mesh Panel, typically in
sizes 2000×2000mm or 2500×2000mm, produced with a wire diameter of 4mm and a
mesh size of 12.7×76.2mm. Custom specifications are available upon request.
Surface treatments include hot dip-coating, spray-coating, and hot-dip
galvanizing, with the option for triangular bending as needed. Post diameters
are generally 60×60mm or 80×80mm, available in pre-embedded or flange types.
This mesh features a dense structure, ideal for high-security areas such as
prisons, detention centers, airports, power plants, and facilities protection.

Portable 358 mesh fence black powder coated
Black 358 mesh fence features a black powder coating with UV resistance. The
posts, simple and light, end in a flat top, with flat base suitable for diverse
installation methods.

Anti climbing 358 mesh panels dark green coated
Dark green 358 mesh fence offers extra security features and ornamental effects
into natural landscapes. With sturdy posts with horizontal bars at the top, the
flanged base allows for stable surface mounting on concrete or other materials,
ideal for portable security fencing solutions.
