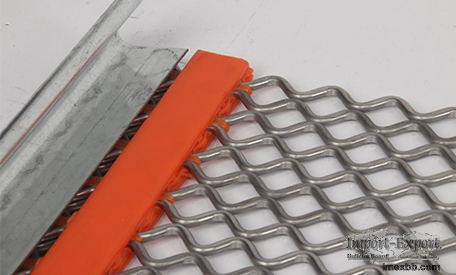

Anpeng Self-cleaning Screens

Anpeng Self-cleaning series is designed for though to screen applications where
blinding, pegging and clogging are a crucial problem. PU bands, made with 90
Shore A ( Poly Hardness ) polyurethane, bind together with steel wires allowing
high-frequency vibration during screening and creating the self-cleaning
effect. Each wire on self cleaning wire mesh vibrates at different frequency,
which creates the self-cleaning effects of all our self-cleaning series. The
theory behind is that a clogged material is able to pass through or bounce back
up, because the different vibration frequency in wires is essentially creating
alternating force from opposite side of the mesh. Anpeng self-cleaning series
offers greater wear resistance and longer wear life, promises to significantly
increase efficiency and lower cost of production.

Anpeng Self Cleaning Wire Mesh Series
Diamond Opening Screen

Wire diameter: 1.2mm-12.7mm Opening size: 2.24mm~62.00mm This series produces
high quality, consistent product and is effective in most general applications.
Diamond Opening Screen
Our most popular self-cleaning screen. It is similar to traditional square
openings meshes, but with greater open area and increased throughput, providing
precise material stratification and cleaner product.

Wave Opening Screen

Wire diameter: 1.2mm-12.7mm Opening size:3.18mm~17.15mm This series delivers
maximum throughput and ideal for removal of fines, producing a cleaner retained
product.
Wave Opening Screen
Made with crimped wires placed parallel to each other, best used for severe
blinding application, large open area offers effective sizing control, ideal
for the removal of super fine materials and etc.

Triangle Opening Screen

Wire diameter: 1.2mm-12.7mm Opening size:1.2mm~20.00mm This series is designed
for finer size material and absorb greater impact while maintaining accurate
sizing.
Triangle Opening Screen
Unique combination of crimped and straight wire form the triangular opening
shape to absorb impact, and improve accuracy of sizing. This is a perfect
replacement of traditional fine mesh.

Harp Screen

Wire diameter: 1.2mm-12.7mm Opening size:4.0mm~25.00mm This series is designed
in a standard piano wire screen style and most efficient in the dry screening
of sand, gravel, topsoil and more.
Harp Screen
Designed to have the maximum open area, most efficiently in removing sand,
gravel, topsoil, fines and etc.

Advantages of Anpeng Self-cleaning Screens
High Tensile Steel
that is abrasion resistant, which is ideal for applications facing significant
wear such as filtering rocks, sand and gravel.

Stainless Steel
known for its high corrosion and temperture resistance, is extremely long-
lasting and durable. It is ideal to be used in high humidity applications.

Polyurethane
is known for its high load bearing capacity in both tension and compression,
and its abrasion and impact resistance property, Polyurethane is extremely wear
proof in challenging applications even at very low temperture.

Anpeng Wire Mesh--Professional industrial screens manufacturers. We specialize
in producing screening media for over 20 years, with the most cost-effective
screen media options at top quality, much affordable price, and short delivery
time, enabling our customers to be very competitive in the markets worldwide.

Minimum Order: 100 tons
