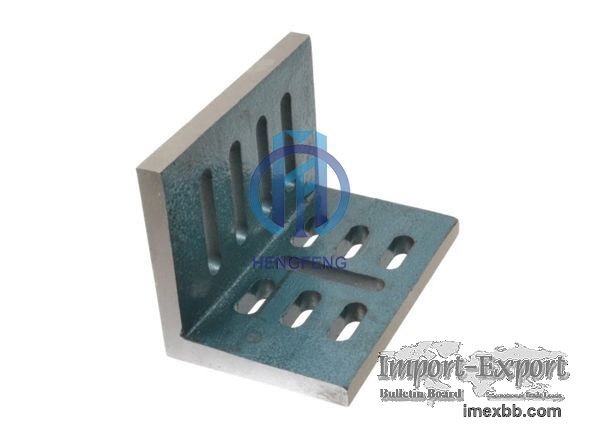

Angle Plate Slotted Open End

Angle Plates Slotted Open End are made of high tensile cast iron. They are
ground or machined finish with open end. Slotted pattern to allow for easy
flexible set-up of fixturing components. They provide a versatile means of
holding work for layout, machining and inspection and also are widely used as
vertical reference. All machined faces are square and parallel. They can be
made in single piece or in two sections.

Key Features:
• Made from high quality Cast Iron.
• Heat-treated for stress relief.
• High strength, High precision, High hardness.
• Finer accuracies can also be achieved on request at extra cost.
• Slots arranged for maximum clamping versatility.
• Customized and specifically designed as customers’ requirement.
These features make HENGFENG one of the best Cast Iron Angle Plates
manufacturers in the industry.

Cast iron angle plates SPECIFICATION:
OEM or ODM service: we offer a wide range of services from standard Cast Iron
Angle Plates to custom order as per request.
Calibration Certificate: EX-works inspection reports offered by our Quality
Inspection Department are included with every surface plate, “Calibration
Certificate” is available upon request at extra cost.
Delivery Costs: calculated during the checkout process.

Material: HT200-300
Specification: standard or customize
Working Surface: flat, T-slots, slotted holes, custom hole sizes, etc.
Hardness of the working surface: HB160-240
Surface treatment: hand scraped, ground finish or machined finish
Surface coating: working surface covered with antirust oil and unmachined areas
covered with antirust paint.
Precision grade: 1-3
Type: webbed end or open end
Packaging: anti-rust packing + plywood box
Warranty: 1 year
