ANENG AN8205C Digital Multimeter AC/DC Voltage Meter Tester

ANENG AN8205C Digital Multimeter AC/DC Voltage Meter DC Ammeter Resistance
Temperature Tester,ANENG AN8205C Digital Multimeter AC/DC Voltage Meter DC
Ammeter Resistance Temperature Tester -20℃~1300 ℃

Features:
3 1/2 digital LCD screen, maximum display value 1999.
Multimeter features a clear, easy to read LCD display, with white back
Light.
Portable & Compact Design.
Data retention.
Low voltage symbol display.
Background light function.
Overload protectio n.
Pass measurement.
Diode: Yes
Audion: Yes
Pass-through measurement: Yes
Data retention: Yes
Background light: Yes
Maximum display: 1999

Specification:
DC voltage: 200mV - 2-20-2000-600v plus or minus 0.5%
AC voltage: 200V - 600V plus or minus 1.0%
DC current: 2m - 20m - 200m - 10A + 1.8%
Resistance: 200-2-20 k to 200 k, 2 k m Ω plus or minus 1.0%
Temperature measurement: K type thermocouple, - 20 ℃ ~ 1300 ℃ (+ / - 3%)
Triode measurement: (PNP/NPN triode hFE)
Diode measurement: Yes
Pass test: Yes
Input resistance: 1 m Ω
Electric pool: 9V, 6F22 (Battery is not included)
Maximum display: 1999 (3 semi-liquid crystal display)
Display size: 45 x 18mm

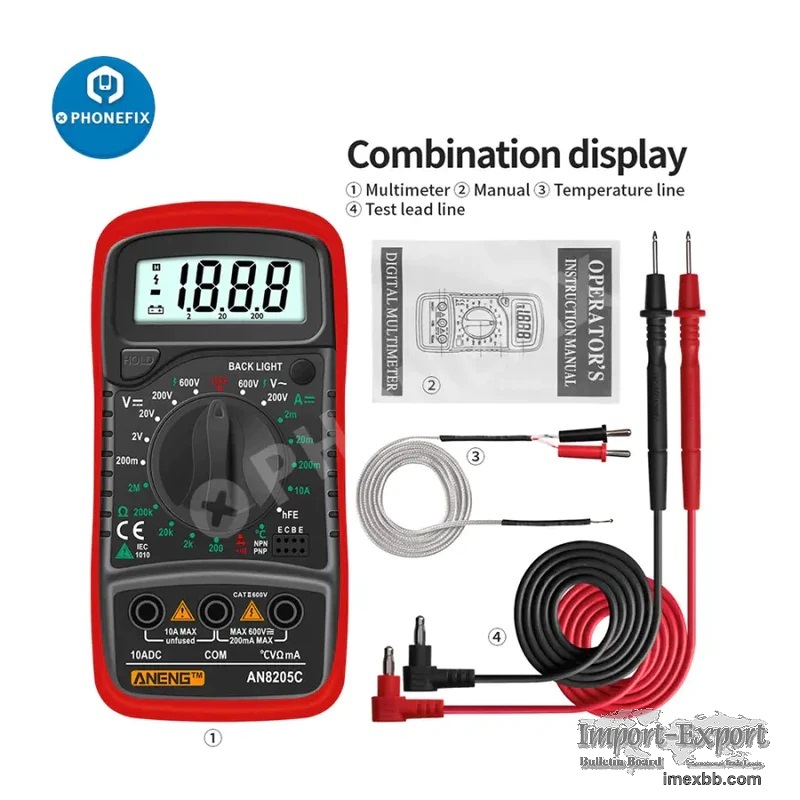

Package included:
1 x ANENG AN8205C Digital Multimeter (Battery is not included)
2 x Pair Electronic Probe
1 x User Manual

Note:
Due to the difference between different monitors, the picture may not
reflect the actual color of the item. Thank you!

There might be 0-1cm errors due to manual measurement.Please allow slight
error of measurement.

Minimum Order: 1 pieces
