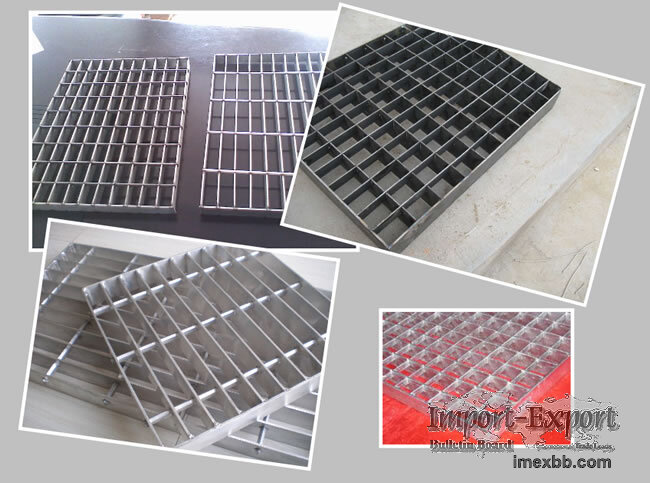

Aluminum Bar Grating Panels - For Architecture And Building Uses

Aluminum bar grating is a non-rusting and light weight metal structure commonly
used as walkways, stair treads, access covers and platforms in construction of
reservoirs, plants, ships, barges, also used as metal flooring in breweries,
bottling plants, food processing and storage facilities, used as architectural
mesh panels for facade, sunshade, air vent and metal cladding. Aluminum grating
panels are available in standard or anodized finishes.

Aluminum Grating Type: flat bar grates: plain type, plain I type, serrated
type, serrated I type; cross bar grating: round type and square twisted type.

Swaged Rectangular Aluminum Grating - Most Widely Used Aluminum Grating
Swaged rectangular bar grate provides clean, crisp lines and the cross bar is
fully locked within the bearing bar, slightly below the top surface.

"SGI" Swaged "I-Bar" Aluminum Grating - High Efficient and Skid Resisting
Grating
This type of aluminum grating carries the same load as 3/16” thick rectangular
bar type aluminum grating, but weighs slightly less per square foot.
Additionally, the striated top and bottom flanges of the "I" bar provide
enhanced skid resistance without the cost of serration.

"SGF" Swaged Flush-Top Aluminum Grating - Design Suitable for Pedestrian
Traffic Walking Surface
Manufactured with a unique, extruded cross bar that is flush with the top
surface of the bearing bars after swaging, this aluminum grating provides an
enhanced walking surface for areas subject to continuous pedestrian traffic.

Aluminum Dovetail Pressure Locked Grating - Architectural Mesh Panels
The deep cross bars of the dovetail gratings are popular for architectural
applications, to be used as sun shade panels and decorative infill panels, with
the deeper cross bar serving as architectural accent.

Aluminum Bar Grating Products:

6063-T6 Aluminum Bar Grating
Architectural Aluminum Grille Bar Gratings
Aluminum Platform Bar Grating
Swage-Locked Aluminum Bar Grating
Bar Serrated Aluminum Grating
Press Lock Aluminum Grating


6063-T6 Aluminum Bar Grating with Dove Tail
Press Lock/Dove Tail, Smooth Surface
Spacing - 7/16" x 4" Spacing
1" x 3/16" Bearing Bar to Run Parallel to Length
1" x 3/16" Edge Trim Band

Grating Set to Cover 125.25" Width x 115" Length Span

Supplied at Pieces
36-1/16" Wide x 115" Long
16-13/16" Wide x 115" Long

Grating Set to Cover (2 Spans) 91" Width x 119" Length Spans

Supplied per Set
36-1/16" Wide x 119" Long
18-9/16" Wide x 119" Long

Architectural Aluminum Grille Bar Gratings for Metal Facade and Cladding Panels
Features:
Light weight-easy to install and clean;
Nice appearance-high strength-ventilation and light can pass through;
Material saving-slip-resistant and safe;
Heavy loading and durable
