Aluminium Coil Coating Line

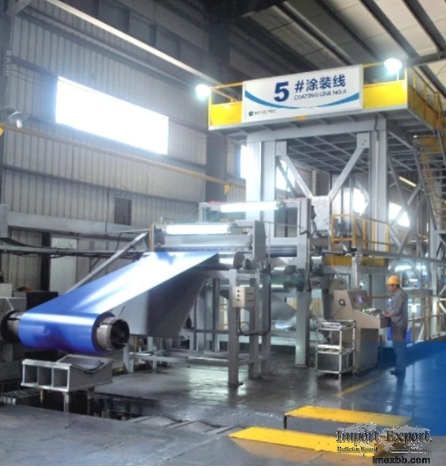

Aluminium Coil Coating Line - Litong
Why is it necessary to coated aluminium coil or plastics with an aluminium
coating?
To prevent corrosion of items as well as aesthetics. The first continuous coil
painting line, invented by Joseph Hunter, laid the groundwork for the
subsequent development of industrial automation.
Smalls says it was a very cost effective way of painting metal.
So what are the main equipment and process of aluminum coil coating line?
I. Main coating equipment
1. Terminal equipment and aluminum coil coaters.
2. Metal treatment.
3. Primer/topcoat applicator.
4. Air cooling and water quenching; air cooling is used to reduce the strip PMT
(peak metal temperature) to about 150-170 degrees Celsius.
5. Process control.
6. Tension straightener; this is where a high degree of control is required and
aluminum color coated coils can be as light as 0.18mm (equivalent to 0.06mm
steel).
7. Chemical coating machine.
8. Main/finish drying box.
9. Hot/cold laminators; can increase the advantages of material stiffness
10. Installation service.

II. Coil coating process flow
1. Production management of pre-treatment stage of coating line.
Aluminum coils must be surface treated to remove oil and rust before powder
coating. There are more chemicals used in this stage, mainly rust remover,
degreasing agent, table conditioning agent, phosphating agent, etc.
2. Powder coating
Ensure that the sprayed aluminum rolls are evenly powdered and of uniform
thickness to prevent defects such as thin spraying, leakage spraying, rubbing
off, etc. Before entering curing, the powder attached to it should be blown off
as far as possible to facilitate uniform powdering of aluminum rolls.
3. Heating curing
Baking in strict accordance with the process and temperature and time control,
pay practical attention to prevent color difference, over-baking or too short a
time caused by insufficient curing.
4.Final installation and transportation
Characteristics of LITONG aluminum coil coating line
1. Adopt high precision roll coating machine, excellent coating quality.
2. Suitable for acrylic, polyester, and polyvinylidene fluoride (PVDF)
coatings.
3. Specifically designed to fit the area of the customer's plant.
4. Fine coating in accordance with international standards.
5. Easy to operate controls, online operator training available.
In short aluminum color coating provides a versatile product for the
construction industry. Incorrect line design can lead to high scrap rates or
inability to handle the full range of products, resulting in far lower
production yields and incalculable losses, choosing the right coating line
plant and aluminum coil coating machinery is critical for your painted
aluminium coils. Please feel free to contact us to discuss your requirements.
