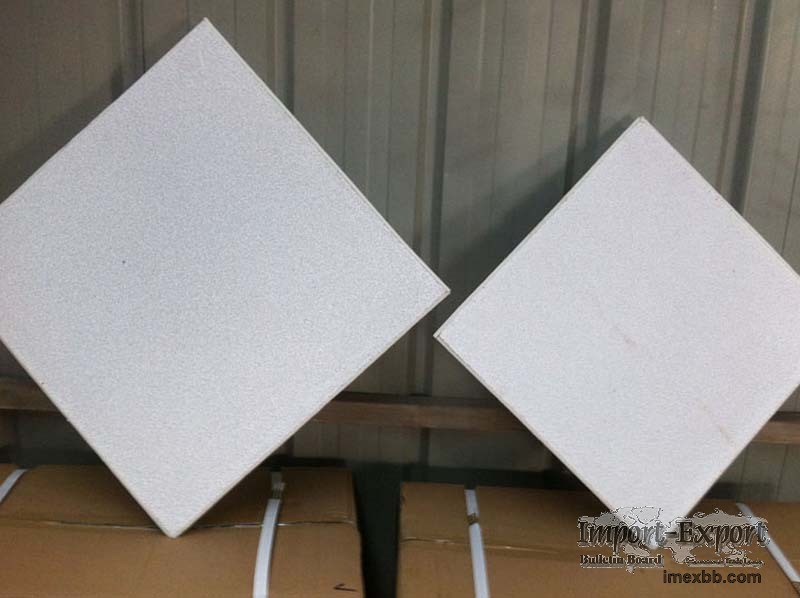

Alumina Ceramic Foam Filter for Casting

sales@adtechamm.com provides Ceramic Foam Filter, Tap Out Cone, Degassing Unit,
CFF Unit, Castertip, Launder, hop-top casting for molten aluminum.
www.adtechamm.com

Ceramic foam filter Dimension
660x660x50(26 inch)
584x584x50(23 inch)
508x508x50(20 inch)
432x432x50(17 inch)
381x381x50(15 inch)
305x305x50(12 inch)
228x228x50(9 inch)
178x178x50(7 inch)

Ceramic foam filter Pore Size（PPI）:10/20/30/40/50/60

30ppi 40ppi Foundry Filter is the most commonly used ceramic foam filter in the
aluminum casting industry.
Ordinary aluminum casting usually uses 10-40ppi ceramic filter plates.
Aviation and high-quality aluminum materials usually use 30-60ppi ceramic filter
plates.

Ceramic foam filters are basically divided into 6 pore sizes: 10PPI, 15PPI, 20PPI,
25PPI, 30PPI, and 40PPI. The larger the number, the smaller the aperture. But in
actual practice, the four types of 10PPI 20PPI 30PP 40PPI can meet the needs of
customers.

Aperture selection
1. The casting: 10～25ppi
2. Semi-continuous casting: 30～60ppi
3. High-quality aluminum or sheet: 50～60ppi
4. Continuous casting and rolling: 50～60p

ADTECH keeps focusing on the manufacture of the metallurgical material.

ADTECH is one pioneer following by the International Enterprise, who keeps
focusing on the manufacture of the metallurgical material.
1.Ceramic Foam Filter
2.Degassing Unit
3.Filter Box
4.Hot-top casting series
5.Roll casting nozzle
6.Flux series
7.Other Metallurgical Material

SALES@ADTECHAMM.COM

Minimum Order: 1 pieces

Click to Enlarge
