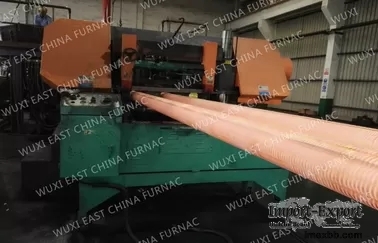

Alloy Cu - Ni Copper Continuous Casting Machine One Strand 20mm Thickness

PRODUCT DESCRIPTION

Alloy Cu - Ni Copper Continuous Casting Machine One Strand 20mm Thickness

Alloy Cu - Ni Copper Continuous Casting Machine One Strand 20mm Thickness
0Alloy Cu - Ni Copper Continuous Casting Machine One Strand 20mm Thickness
1Alloy Cu - Ni Copper Continuous Casting Machine One Strand 20mm Thickness 2

Ⅰ.Major Technical Parameters of Equipment:

1 Smelting furnace:
1.1 Total capacity of furnace 5.0T
1.2 Effective capacity of furnace 2.5T
1.3 Furnace voltage 380V
1.4 Furnace power 600KW
1.5 Melting rate 2t/h
1.6 Power factor after compensation: 0.95-1.0
1.7 Number of phases and connection mode of inductor:
Single-phase series-connection

1.8 Rated capacity of transformer:
900KVA water-cooled autotransformer (380V incoming-line, three-phase,

1.9 coil cooling mode: Water-cooling
1.10 Cooling water consumption: 5m3／h
1.11 Maximum temperature of furnace: 1500℃
2 Holding furnace section

2.1 Effective capacity of furnace: 4.0T
2.2 Effective casting capacity: Less than 85 dB
2.3 Rated voltage: 380V
2.4 Rated power : 250KW
2.5 Rated capacity of transformer:
400KVA water-cooled autotransformer

(380V incoming-line, three-phase,

no-load stepped voltage-regulating).

2.6 Power factor after compensation: 0.95-1.0
2.7 Temperature control precision: ±8℃
2.8 Maximum temperature of furnace: 1300℃
2.9 Coil cooling mode:
Water-cooling

3 Mould
3.1 width 380- 500mm
3.2 thickness 16-20mm.
3.3 Material 1Cr18Ni9Ti stainless steel, lined with copper bush
(made of T2 copper)
4 Secondary cooling device
4.1 Water consumption: 3m ³／h
4.2 Water pressure: 0.2-0.3Mpa
5 Withdrawal machine
5.1 Maximum pushing and drawing force: 50KN
5.2 Speed: Speed:
5.3 Minimum stroke range:
0.1mm

5.4 Shortest standby time 0.01S
5.5 AC servo motor: Siemens motor (11KW)
5.6 Rated rotation speed of motor: 3000r/min
5.7 Static torque: △Tw= 60K Mo (at 60) 70N-M
6
Double-billet hydraulic upper shearing machine:

6.1 Shearing force: 600KN
6.2 shearing thickness: 20mm
6.3 Shearing width: 500mm
6.4 Shearing speed:
0- 5mm/s

6.5 Shearing stroke: 80mm
6.6 Maximum follow-up stroke of shearing machine: 200mm
7 Coiler machine unit
7.1 Power: 5.5KW
7.2 Rotational speed: 1420r/min
7.3 Coiler displacement stroke: 800mm
8 Hydraulic station
8.1
Motor power of hydraulic station for smelting furnace and holding furnace:

2× 7.5KW
8.2 Motor power of hydraulic station for withdrawal machine: 2×
7.5KW
8.3 Motor power of hydraulic pump for upper shearing machine:
2× 11KW

8.4 Motor power of hydraulic pump for coiler: 2× 7.5KW
