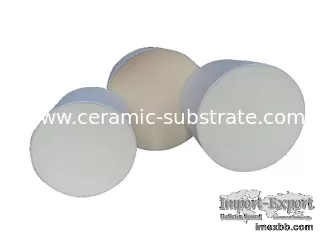

Al2o3 Substrate Cordierite Diesel Particulate Filter White High Porosity

Al2O3 Ceramic Substrates , Cordierite Diesel Particulate Filter

Applications:

This product is a kind of special structure and special material of wall flow
ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas
purification device, using the hole wall of the pore wall flow filter body,
intercept, capture the carbon in the diesel exhaust smoke particles, diesel
exhaust gas purification. There are cordierite and silicon carbide material

2. 1. Product use

This product is a kind of special structure and special material of wall flow
ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas
purification device, using the hole wall of the pore wall flow filter body,
intercept, capture the carbon in the diesel exhaust smoke particles, diesel
exhaust gas purification. There are cordierite and silicon carbide material.

2．Overall dimensions standards

Item

Overall dimensions

standard values

Test method

Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

v , ernier caliper

Overall dimensions

OD:＜120MM

±1.0MM

vernier caliper

≥120MM

±1%

vernier caliper

Height:＜150

±1.0

v , ernier caliper

≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernie , r caliper

200CSI

200±10

vernie , r caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack

Bright light perspective

Physical and chemical properties

Item

Standard value

Test methods

chemical

component

Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO ,

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine

porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃< , br>
thermal dilatometer

The average pore aperture

7～15

Mercury Injection

Apparatus

Description:

This product is a kind of special structure and special material of wall flow
ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas
purification device, using the hole wall of the pore wall flow filter body,
intercept, capture the carbon in the diesel exhaust smoke particles, diesel
exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

● High porosity of hole on the wall of high porosity, good liquidity and
uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock
resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

● Low thermal expansion coefficient
