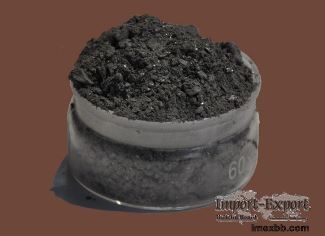

Al2o3 High Alumina Refractory Castable Material Powder Thermal Shock Resist

Thermal Shock Resistance low cement castable refractory material castable
refractory cement
low cement castable refractory material
Low cement refractory castable made by CH Refractories with three levels, which
are high aluminum low cement castable, mullite low cement castable and corundum
low cement castable. The low cement fireproof castable is mainly used for
cement kiln masonryespecially for kiln mouth, kiln door cover, cooler, tertiary
air duct and coal injection pipe.


Applications of Corundum Castable:
Steel furnace, cement kiln, glass kiln, iron making furnace, ceramic tunnel
kiln and so on.

Item CH-GYJ85 CH-GYJ90 CH-GYJ93
AL2O3(%) 85 90 93
Sio2(%) 10 6 2
Bulk Density(g/cm3) 2.9 3.0 3.0

Cold Crushing Strength(Mpa) 110℃*24h 80 100 80
1100℃*3h 80 100 80
1500℃*3h 80 100 80

Cold Pressed Antisegregation Strength(Mpa) 110℃*24h 8 12
8
1100℃*3h 8 12 8
1500℃*3h 8 15 8
Hot after-line rate of change(%) 1100℃*3h -0.1~-0.3
-0.1~-0.3 +-0.2
Max Service temp(℃) 1650 -0.1~-0.5 -0.2~-0.6 +-0.5
Construction methods Vibration Vibration Vibration
Reference water volume(%) 5~6 5.5~6.5 5.5~6.5
