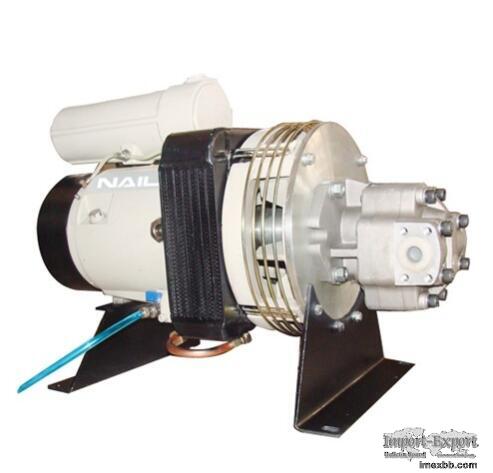

AL series Rotary Vane Compressor

AL series Rotary Vane Compressor
NAILI AL series for Alumimum Crane & Concrete Spraying Machine Vane Compressor


NAILI Portable Vane Compressor for Concrete Spraying machine which is more
suitable for faster

generating the air out to spraying the concrete to the tunnel and basic
construction! and

also widely used in Alumimum Crane in Alumium factory in the world!


Compressor range from 37kw to 75kw;

Cooling system: Indenpentant;
https://www.nailicomp.com/crane-c , oncrete-shooting-vane-compressor/naili-al-
seri , es-for-crane.html

Please send us something you had for your request to make sure everything is
prefect!
Model Pressure AL37 AL55 AL75
F.A.D (m3/min) 7.5 bar 7 10 12
Motor Power (KW) 37 55 75
Rotational Speed   (r.p.m) 1475 1480 1480
IP level IP55 IP55 IP55
Drives Direct Direct Direct
Oil Carryover (ppm) ≤1.5 ≤1.5 ≤1.5
Sound Level Db (A) 78 81 81
Drives Direct Direct Direct

Minimum Order: 1 sets
