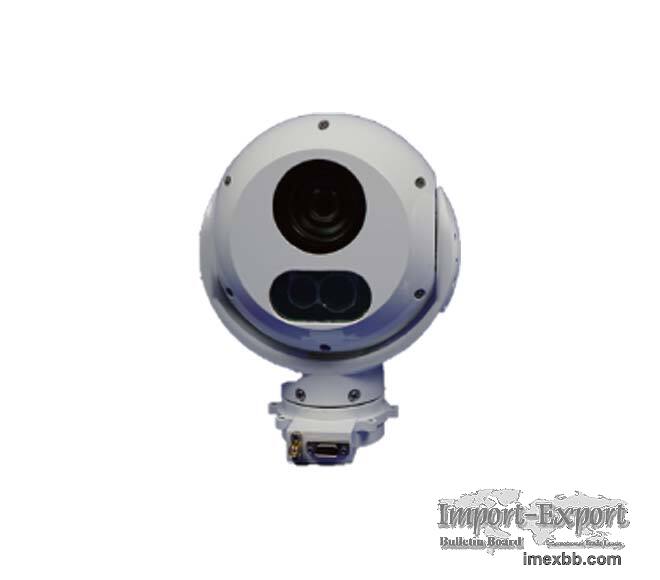

Airborne Surveillance System TAG640-C129T25-L3Ⅰ

Suitable for reconnaissance, targeting, search &rescue, anti-smuggling,
evidence collection, security, environment monitoring, forest fire prevention,
navigation assistance, etc. Compact and cost-effective, it is designed for
equipping on multi-rotor UAV，fixed-wing/rotor unmanned drones and airships，
and other vessels or vehicles for aviation and maritime operating.

Specifications of Airborne System TAG640-C129T25-L3Ⅰ
EO gimbal II(visible+laser) EO gimbal III(visible+IR+laser)
EO gimbal I(visible+IR)
Visible Camera
Detector 1/2.8 ”
Lens 30× optical zoom(4.3mm~129mm)
Resolution 1080P（1920X1080）
Thermal Camera
Detector Uncooled LWIR Detector - Uncooled LWIR Detector
Resolution 640×512 640×512
Focal Length 25mm 25mm
Laser Sensor(Eye-safe laser Ⅰ)
Laser Ranging - distance: ≥3000m Distance: ≥3000m
accuracy：≤±5m accuracy：≤±5m
Stabilized PT
Accuracy ≤1mrad（1σ）
Az Range Nx360°
El Range -90°~+30°
El angular Velocity ≥60°/s
Az angular velocity ≥60°/s
El angular acceleration ≥100°/s²
Az angular acceleration ≥100°/s²
Image Tracking
Integration External
Function Integrated HD Auto Tracking /Auto target recognition
（optional）
Interface
Vide , o Output HD-SDI
Control RS422
Power
External power (24±4)VDC
Power Consumption ≤20W，peak≤50W
Environmental
Operating Temp -20℃～+65℃/-40℃～+65℃
Storage Temp -40℃～+85℃
General
Weight ≤1.75kg（tracking included）
Dimension Φ140mm×185mm

Features of Airborne System TAG640-C129T25-L3Ⅰ
Built-in continuous zoom HD visible camera

640X512 thermal cameras for UAV

Integrated laser rangefinder（Visible, IR, Laser optional）

Torque motor direct drive high-precision two-axis stable platform

Integrated HD Auto Tracking
