Air Suspension System of 13.7m Low-floor City Bus Series

With more than 20 years of commercial vehicle airbag suspension system
experience, Komman's air suspension can be applied to a 13.7m Large Low-floor

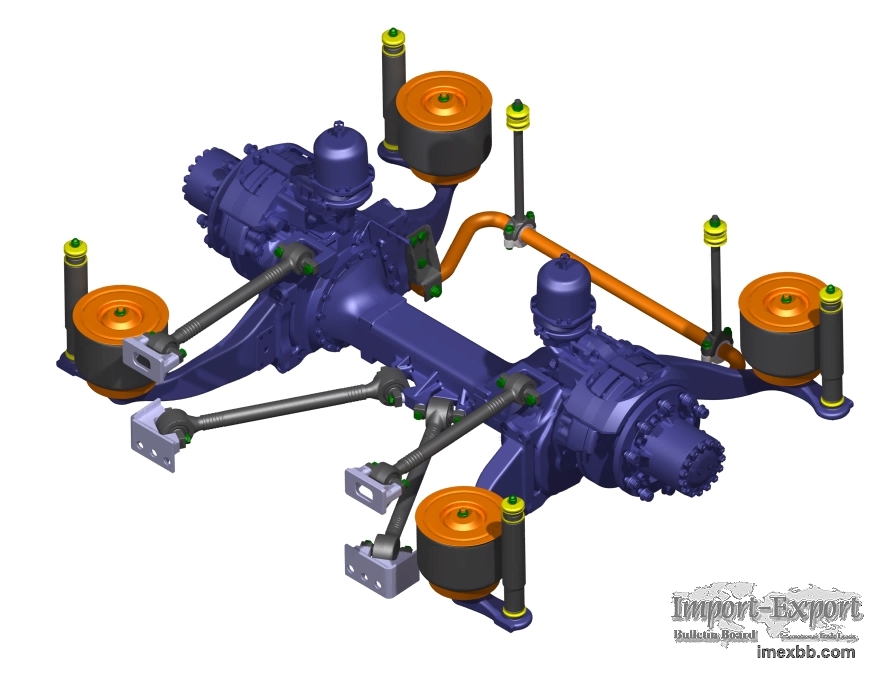

City Bus. This series of air suspension systems adopt a four-link portal
axle, large-span airbag, imported technology portal axle, and disc brake,
four shock absorbers, low floor design.

Komman air bag suspension have the advantages of lower operating costs and
greater economy, it can improve bus comfort and safety.

Four-link portal axle front air suspension system; Hungarian RABA technology
portal axle and imported disc brakes. The price is about 30% lower than that
of imported similar products.

The Main Technical Parameters Of The Portal Axle Front Air Suspension System
Model AFN075 serious air suspension
Rated load 7500kg
Width of vehicle frame 940mm（Channel width can reach 720-780mm）
Wheelbase 1980~2020mm
Axle travel 160mm
Span between air springs 1200~1300mm
System frequency offset 1.15~1.3HZ


Komman is a professional air bag suspension manufacturer, we provide air
ride, front air ride suspension for semi truck, air lift suspension kit, air
bag kit, airbag trailer suspension kits, air bag suspension wholesale and
etc. For airbag suspension price or more information, please feel free to
contact us!

Minimum Order: 1 packs
