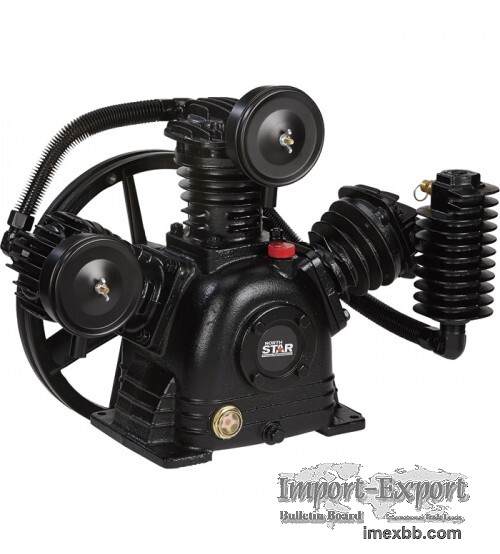

Air Compressor Pump NorthStar 2 Stage 3 Cylinder 14.9 CFM 90 PSI

High-quality NorthStar® belt-driven pump works with gas or electric motors and features a full cast iron pump for longevity, Low Vibration Technology (LVT) for smooth running and long life, a W-type cylinder orientation for consistent cooling and bearings on both ends of crankshaft for excellent support. Also features intercooler to cool compressed air for lower moisture content.


What's Included

(1) Air compressor pump



Features + Benefits

Full cast iron pump for long service life
W-style cylinder design for superior cooling
Pump head made of FC35 Grade cast iron
Floating-type Swedish steel valves deliver much longer valve life
Operates at slower RPM to run cooler and last longer
Low Vibration Technology (LVT) features a dynamically balanced pump for smooth operation and long life
One-piece cast iron crankcase has bearings on both ends of crankshaft for superior crankshaft support, not overhung crankshaft design
Two-stage, 3-cylinder pump
Produces 14.9 CFM @ 90 PSI
Requires 5 HP electric or 9 HP gas motor
100% duty cycle
175 max. PSI
12.5in. dia. oversized flywheel for cooler operation
Heavy cast iron flywheel provides extra momentum
Connecting rod oil journals ensure that bronze bushings are lubricated
Step-type piston rings ensure piston ring overlap for better compression
Sight glass for quick viewing of oil level
Replaceable crank journals and wrist pin journal/needle bearings
Two-piece connecting rods can be rebuilt for superior serviceability
High pressure piston wrist pins have needle bearings
Uses single A-groove belt
Intercooler helps cool compressed air for lower moisture content
1/2in. compression outlet

Key Specs
Item# 4593000
Brand NorthStar
Manufacturer's Warranty 12 months parts / 12 months labor
Ship Weight 83.0 lbs
CFM at 90 PSI 14.9
Max. PSI 175
Flywheel Diameter (in.) 12.5
Stages 2
Total Cylinders 3
Required Power 5 HP electric or 9 HP gas motor
Bore Diameter (in.) 2.56 low pressure cyl., 2.01 high pressure cyl.
Stroke Length (in.) 2.36
Dimensions L x W x H (in.) 28 x 22 5/8 x 22
