AG Drone Motor Series

Product DescriptionSpecification
24v Brushless Motor Series
With standardization of UAV industry segment, the requirements of user are
growing rapidly. TTF, is now releasing P series motors for agricultural
application with powerful thrust and high performance after tremendous tests. P
series 24 volt brushless motors are capable of working in a demanding
environment with reliability and long service life.

More Thrust
Weight decrease is achieved by optimizing stator structure while maintaining
its mechanical strength. Manual winding helps increase slot fullness for more
thrust.

Low Noise, Stable & Reliable
24N28P/36N42P configuration reduces the strongest drone motor vibration in
operation for motor wearing diminution, service life extension and noise
debasement. P series motors run more smoothly than motors with general
configuration at maximum throttle.

Impact Resistant
Optimized machining precision and motor structure with motor core part
protection effectively avoids cases as to the failure in motor utilization
after crash and impact.

Dustproof, Waterproof & Cooling
Closed exterior and lattice structure take account of both dustproof,
waterproof and cooling effects which handles usage in various environment.

Anti- corrosion Coil
Special coating gets the coil free of corrosion from pesticides.

Extensive Compatibility
There are M3 and M4 mounting holes on the motor base for different frames.

P series largest drone motors are not confined in the plant protection field.
It can also be employed on VTOL planes.

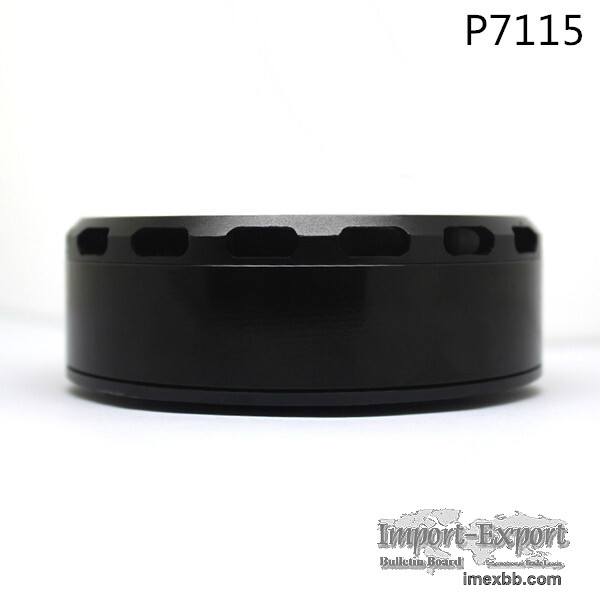

P series motor P6215-175KV P7115-135KV P8320-120KV
CF Prop & Max thrust 22*75: 9.46kg
21*70: 9.15kg 26*80:10.85kg
26*85: 10.93kg 30*80: 16.62kg
30*95:17.14kg
ESC 80A 80A 100A
Volts 12S 12S 12S
AUW Quadcopter: 16kg
Hex-copter: 25kg
Oct-copter: 33kg Quadcopter: 21kg
Hex-copter: 30kg
Oct-copter: 38kg Quadcopter: 33kg
Hex-copter: 48kg
Oct-copter: 62kg

Shenzhen TitanFlying Technology Co., Ltd is a high-tech enterprise and
professional Aero-Model manufacturer that unifies product design, research
development, production, marketing and customer service. Our main product are
uamanned aerial vehicle, including professional drones and consumer drones, as
well as DIY components for drones.
