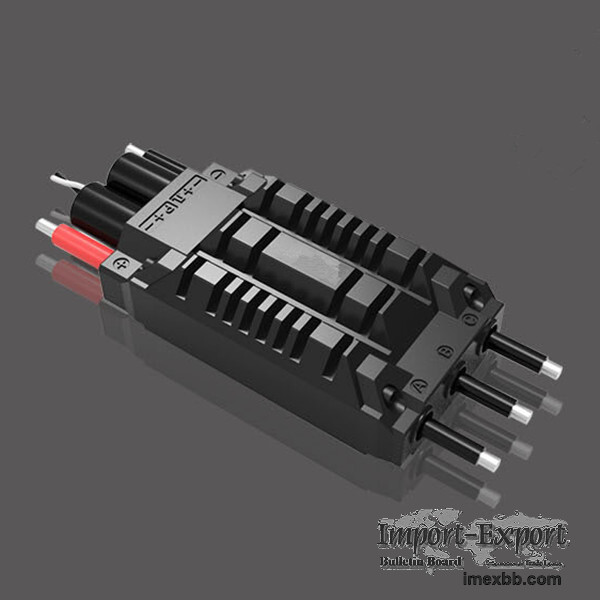

AG Drone ESC

Product Description Specification
ESC AG
32-bit quadcopter motor ESC, Quick and Stable Response.
Splash proof and corrosion resistance; Higher efficiency with less heat
generation.
● Agriculture ESC use STM32F051 MCU, ARM 32-bit Cortex Core with 48 MHz
frequency.
● Optimized firmware is specialized for disc motor, excellent compatibility.
● The firmware is specialized for multi-rotor, uses ASCF technology (Active
Switch Continued Flow), higher efficiency, significantly reduce the heat when
ESC’s working.
● Splash-proof, corrosion resistant, especially suitable for agricultural
plant protection multi-rotor;
● Strong self-adaptable firmware, 4 timing options, very simple to use.
● Supports frequency of throttle signal to 500Hz max, compatible with various
kinds of flight control. ( ≥500Hz throttle signal is nonstandard signal )
● Maximum supports 12S LiPo battery, supports for single LiPo battery voltage
up to 4.35V.

32-bit MCU
Quadcopter esc uses powerful STM32F051 series MCU and ARM 32-bit Cortex core,
working at 48MHz frequency. Fast calculation and smooth operation.

Waterproof & Corrosion Resistance
Complete waterproof for the ESC to meet the purpose of agricultural drone, with
fine and meticulous protection of ESC, agriculture brushless ESC injection
molding technique and its waterproof level is up to IPX-5. Not only has good
heat dissipation and exquisite appearance, but also protect electrical
components from external interference, greatly extend service life. Rain drops
and pesticide liquid have no influence to electronic parts in operation.

Agricultural drone exclusive software, fast throttle response, fly more stable
Agricultural drone special structure and aerodynamic characteristics, request
quicker response of ESC. Thanks to the agricultural drone core program, fast
throttle response and good throttle linear experience. Makes flight more
stable, suitable for intelligent task of agricultural drone.

ASCF: high efficient
Specific designed firmware for multirotor which adopts Active Switch Continued
Flow( ASCF) can reduce heat generation magnificently and increase efficiency.

Boost to Agriculture
High efficiency, long hover time. Synchronous rectification drive efficiency
optimization technology to improve efficiency, extended flight time, compared
with similar products in the market.
Agriculture Drone ESC 80A Agriculture Drone ESC 100A
Agriculture Drone ESC 150A
Specifications
Cont./ Peak Current(10s) 80A/ 120A(10s) 100A/ 120A(10s) 150A/ 180A(10s)
Input 5-12S LiPo 5-12S LiPo 5-12S LiPo
BEC Output No No No
Size & Weight
Size 81.5x36.5x21.1 mm 76x36.5x20 mm 136.5x48x27 mm
Weight 103 g 95g 249g

Applications 550mm Class Drone 650mm Class Drone

Shenzhen TitanFlying Technology Co., Ltd is a high-tech enterprise and
professional Aero-Model manufacturer that unifies product design, research
development, production, marketing and customer service. Our main product are
uamanned aerial vehicle, including professional drones and consumer drones, as
well as DIY components for drones.
