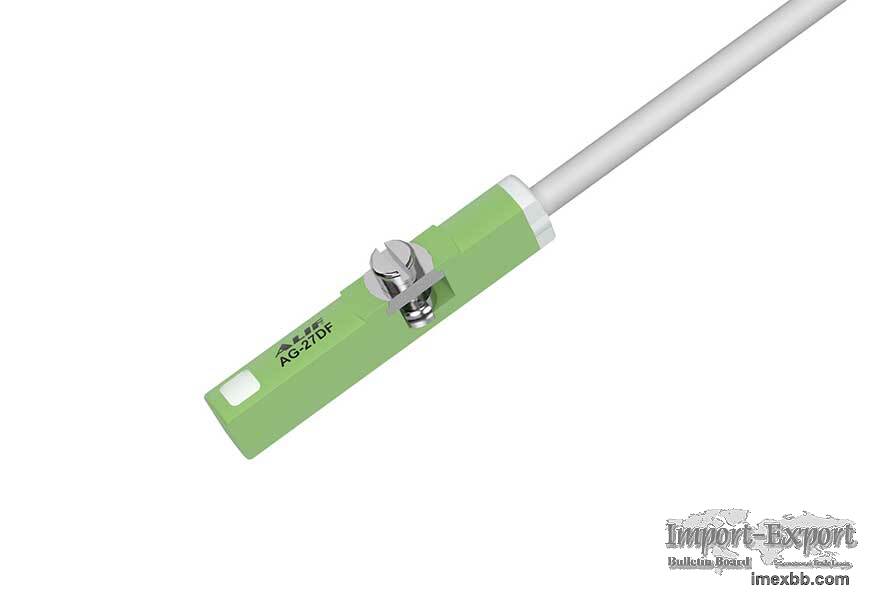

AG-27 Magnetic Cylinder Sensor

AG-27 series magnetic sensor

The AG-27 series is suitable for all 4φC-slot cylinders on the market. The
unique rotor screw enhances the tightness of the combination with the
cylinder, and can withstand 5kgF tension without loosening; the installation
method directly placed above the groove can be used. saves a lot of loading
and unloading time.

Specification of AG-27 Magnetic Cylinder Sensor
Model AG-27DF AG-27N AG-27P
Switching Logic Normally Open Solid State Output, Normally Open
Output Type 2 Wire Solid State NPN Current Sinking PNP Current
Sinking
Voltage Range 10～30V DC 5～30V DC
Sensor Current 1～50 mA 0～200 mA
Switch Rating 1.5 W Max. 6 W Max.
Consumption / 3 mA Max.@24V
Voltage Drop 2.65V Max.@50mA DC 0.5V Max.@200mA DC
Leakage Current 90 μA Max.@28V 0.01 mA Max.
Indicator Red LED Red LED Green LED
Cable Φ2.2, 2C, Grey Oil-Resistant PUR Φ2.2, 3C, Grey Oil-Resistant
PUR
Sensitivity 40～800 Gauss 40～800 Gauss
Sensor Frequency 900Hz 5000Hz
Temperature -10～70℃ -10～70℃
Shock 50G 50G
Vibration 9G 9G
Ingress Protection IP68 (BJ-R200810105A-01) IP68 (BJ-R200810105A-
01)
Protection Circuit Surge Suppression Power Reverse Polarity; Surge
Suppression
CE Certificate NO. E8A 17 04 53334 007 E8A 17 04 53334 008
CNEx Certificate NO. CNEx21.2238X CNEx21.2239X
RoHS2.0 NO. RoHS 2011/65/EU & (EU) 2015/863
Reach NO. (EC) N 1907/2006 (REACH)
