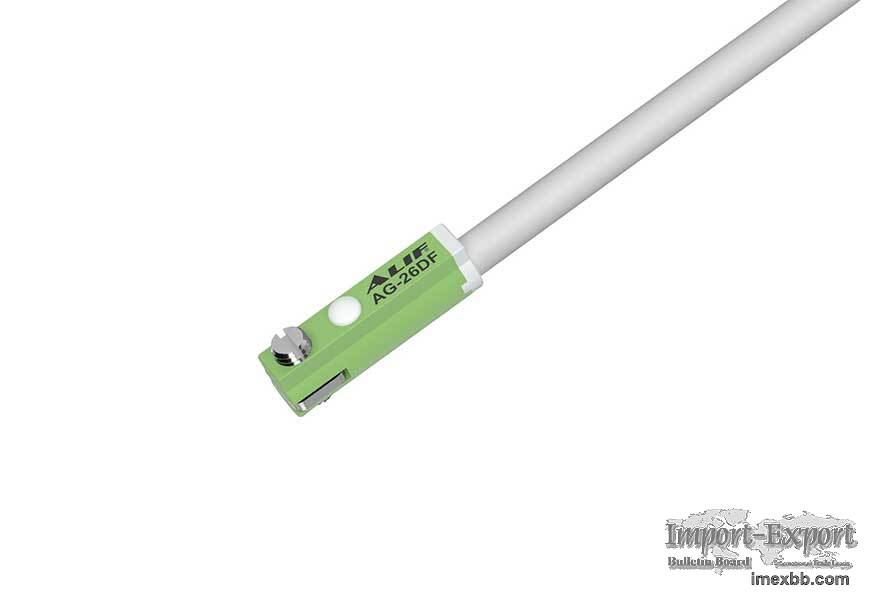

AG-26 Magnetic Cylinder Sensor

AG-26 series magnetic sensor

AG-26 series is generally used for 4φ diameter C-shaped grooved cylinders.
There are six specifications such as magnetic reed tube type and electronic
type to choose from. With adapters, it can be used for 6-63φ cylinder
diameter round cylinders. It is ALIF’s 4φC type. One of the most widely
used series of grooved cylinders, greatly reducing the pressure on purchasing
inventory.

Specification of AG-26 Magnetic Cylinder Sensor
Model AG-26DF AG-26N AG-26P
Switching Logic Normally Open Solid State Output, Normally Open
Output Type 2 Wire Solid State NPN Current Sinking PNP Current
Sinking
voltage Range 10～30V DC 5～30V DC
Sensor Current 1～50 mA 0～100 mA
Switch Rating 1.5 W Max. 3W Max.
Consumption / 3 mA Max.@24V
Voltage Drop 2.65V Max.@50mA DC 0.8V Max.@200mA DC
Leakage Current 90 μA Max.@28V 0.01 mA Max.
Indicator Red LED Red LED Green LED
Cable Φ2.2, 2C, Grey Oil-Resistant PUR Φ2.2, 3C, Grey Oil-Resistant
PUR
Sensitivity 40～800 Gauss 40～800 Gauss
Sensor Frequency 900Hz 900Hz
Temperature -10～70℃ -10～70℃
Shock 50G 50G
Vibration 9G 9G
Ingress Protection IP68 (GB/T4208-2017) IP68 (GB/T4208-2017)
Protection Circuit Surge Suppression Power Reverse Polarity; Surge
Suppression
CE Certificate NO. E8A 17 04 53334 007 E8A 17 04 53334 008
CNEx Certificate NO. CNEx21.2238X CNEx21.2239X
RoHS2.0 NO. RoHS 2011/65/EU & (EU) 2015/863
Reach NO. (EC) N 1907/2006 (REACH)

ALIF Technology provides alif sensor, hydraulic cylinder stroke position
sensor, pneumatic cylinder sensors, etc. For more information about cylinder
position sensor symptoms, please feel free to contact us!
