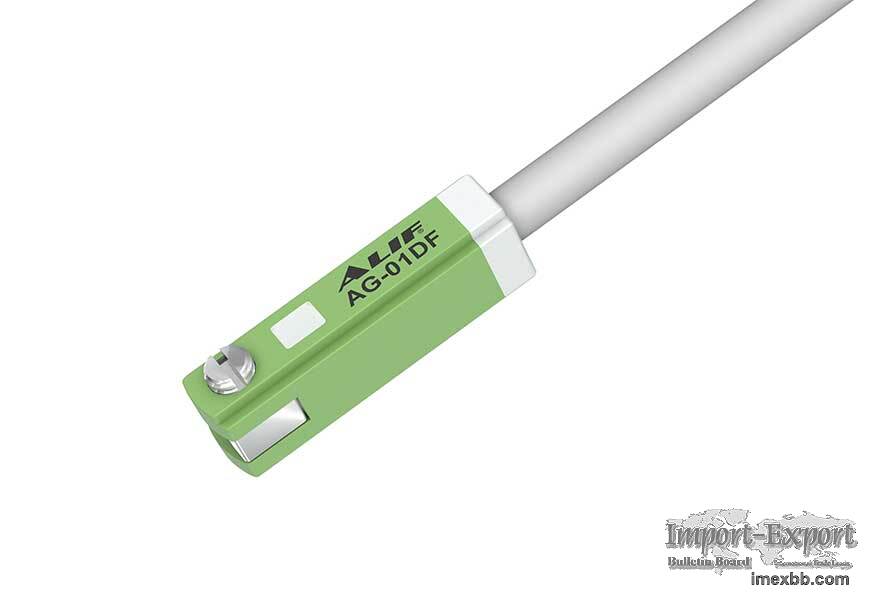

AG-01 Magnetic Cylinder Sensormagnetic field detection sensor

AG-01 series magnetic sensor
The new AG-01 series is suitable for AIRTAC 4.35*4.5 square grooves, which
can replace the DS1-G of AIRTAC; the embedded stainless steel nut strengthens
the structural strength, making the AG-01 series more suitable for organic
solvents or strong corrosiveness.

Specification of AG-01 magnetic reed switch for pneumatic cylinder
Model AG-01 DF AG-01 N AG-01 P
Switching Logic Normally Open Solid State Output, Normally Open
Output Type 2 Wire Solid State NPN Current Sinking PNP Current
Sinking
Voltage Range 10～30V DC 5～30V DC
Sensor Current 1～50 mA 0～100 mA
Switch Rating 1.5 W Max. 3W Max.
Consumption / 3 mA Max.@24V
Voltage Drop 2.65V Max.@50mA DC 0.8V Max.@100mA DC
Leakage Current 90 μA Max.@28V 0.01 mA Max.
Indicator Red LED Red LED Green LED
Cable Φ2.8, 2C, Grey Oil-Resistant PVC Φ2.8, 3C, Grey Oil-Resistant
PVC
Sensitivity 40～800 Gauss 40～800 Gauss
Sensor Frequency 900Hz 900Hz
Temperature -10～70℃ -10～70℃
Shock 50G 50G
Vibration 9G 9G
Ingress Protection IP68 (GB/T4208-2017) IP68 (GB/T4208-2017)
Protection Circuit Surge Suppression Power Reverse Polarity; Surge
Suppression
CE Certificate NO. E8A 17 04 53334 007 E8A 17 04 53334 008
CNEx Certificate NO. CNEx21.2238X CNEx21.2239X
RoHS2.0 NO. RoHS 2011/65/EU & (EU) 2015/863
Reach NO. (EC) N 1907/2006 (REACH)

Features of AG-01 pneumatic reed switch sensor
The embedded stainless steel nut strengthens the structural strength of the
shell and is suitable for organic solvents or environments with strong
corrosiveness.

The design of a more miniature shell increases the flexibility of the layout
of the equipment space.

ALIF Technology provides alif sensor, pneumatic cylinder magnetic reed
switch, reed switch in pneumatic cylinders, reed switch sensor pneumatic
cylinder, air cylinder sensor, etc. For more information, please feel free to
contact us!

Minimum Order: 1 dozens
