Advantages of XC Electronic Speed Controllers ESC for RC Hobby Models

Advantages of XC Electronic Speed Controllers (ESCs) for RC Hobbies

E8 electronic speed controller features:
1. Current: Continuous current 160A, peak 320A
2. Output: 3-6s Li-Po
3. Motor: Sensored or sensorless brushless motor, 240,000RPM
4. BEC: 6.0V, 7.4V, 8.4V, continuous current 6A, peak 15A
5. Bluetooth: Parameter programming, firmware upgrade
6. Acceleration: 12 levels of acceleration, quick start like super car
Dimension: 59.8*48.2*35.9mm
7. Compatible with most of motors for RC hobbies

The best electronic speed controllers (ESCs) not only provide high-performance
but also excellent operability and controllability. With 13 years of experience
in this specialized field, Xiongcai ESCs perfectly achieve this.

We have launched a series of electronic speed controllers (ESC) for RC hobbies,
including RC cars, RC trucks, RC boats, RC planes and so on. with high-
performance, operability and controllability. For example, XC202 E8 electronic
speed controller (ESC).

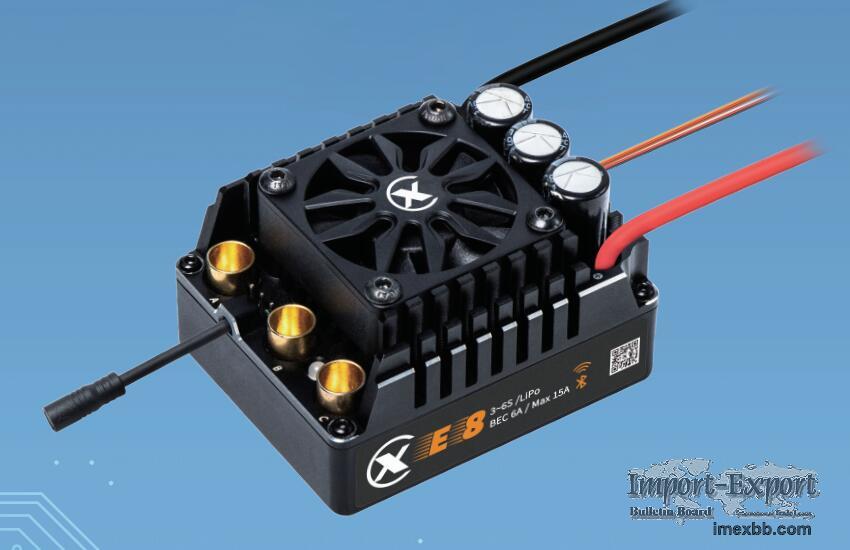

E8 electronic speed controller (ESC) is combined powerful hardware and software
advancements that will redefine limits of RC Cars and Trucks. It is housed in
rugged aluminum case integrating a 40mm blade fan to enhance performance and
promote heat transfer dramatically. Advanced software will minimize the time
the components spend generating heat, taking thermal performance to next level.

E8 electronic speed controller (ESC) can handle 6S LiPo batteries, so it can
deal with anything motor pours out. With 160A sustainable current, you can feel
the ultimate driving experience and handling experience like super cars, you
are able to do any stunts and show your skill.

Built-in high power DCDC conversion circuit improves BEC loading capacity,
keeping servo working at its best.

Besides performance, E8 ESC provides excellent operability. You will see that
many manufacturers designed a programming box for setting parameters. Xiongcai
adopted another approach-developing a mobile application instead which
connected via bluetooth. You can set each item on the app including running
mode, acceleration, brake force, drag brake, turbo timing and more, simple,
clear and convenient as showing below.

We only focus on design and manufacture of electronic speed controllers, and we
make them more powerful and easy to operate. To be honest, isn’t it more
convenient to operate it on mobile phone than on a two-finger wide LCD screen?

E8 electronic speed controller (ESC) for RC hobbies is designed with
characteristics:
1. Quick response for start-up and linearity features.
2. Compatible with most of motors for RC hobby products.
3. Three running modes for different applications or driving skills (“Forward
with brake”, “Forward/Reverse with brake” and “Forward/Reverse” mode).
4. Brake force adjustable.
5. Drag brake force adjustable, especially for beginner or training.
6. 12 levels of acceleration evokes your passion, gets you excited. Something
you can’t feel in reality, but you can feel it here with E8 ESC.
7. Multiple protection measures: Low voltage cut-off protection for lithium or
nickel battery / Over-heat protection / Throttle signal loss protection / Motor
blocked protection. Especially active freewheeling for microsecond response
reducing heat and wave-by-wave current limiting for motor and drivetrain
protection.
8. Turbo timing. It will start at full throttle to additionally increase motor
RPM.
9. Quick setting. All parameters can be set on mobile app, simple and clear.
10. The firmware upgrade. You don’t need to find a wire to connect another box
or computer, what you need to do is click the “firmware” button and upgrade
it online, simple and convenient.
11. waterproof design. Epoxy potted for all weather conditions. Just drive.

At present, we are not as famous as great brands such as Castle Creation,
Hobbywing, Horizon Hobby, HPI Racing, Losi, Team Corally etc., but we are
manufacturing superb quality products, adapting your products and making your
product more competitive on both performance and price.

Xiongcai XC202 E8 electronic speed controller is designed for ultimate handling
experience, you just enjoy the driving, and we will take care of the rest.
Contact us and have a try for ultimate handling experience.

Minimum Order: 100 pieces
