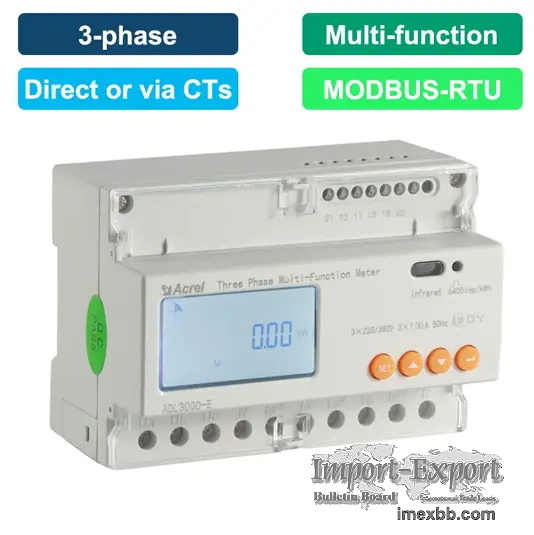

ACREL ADL3000-E 3-PHASE MULTI-FUNCTION AC ENERGY METER

ADL3000-E adopts 35mm din rail installation structure. It is small in size, and
can measure electric energy and other electrical parameters, and can set
parameters such as clock and tariff time period, with high precision and good
reliability. The performance indicators meet various technical requirements for
electric energy meters of the national standard GB/T17215-2002, GB /T17883-1999
and the electric power industry standard DL/T614-2007. It also has the function
of electric energy pulse output; RS485 communication interface can be used to
exchange data with the host computer.

Specification of ADL3000-E 3-Phase Multi-Function AC Energy Meter
Specification 3 phase 3 wires, 3 phase 4 wires
Voltage Reference voltage 3×100V, 3×380V, 3×57.7/100V, 3×220/380V
Consumption <10VA (Single phase)
Impedance >2MΩ
Accuracy class Error±0.2%
Current Input current 3×1(6)A (second connection with 3- phase load line via
extra selected CTs)

3×10(80)A (direct connection with 3-phase load line via CTs
built-in ADL3000-E)
Consumption <1VA (Single phase rated current)
Accuracy class Error±0.2%
Power Active, reactive, apparent power, error±0.5℅
Frequency 45～65Hz, Error±0.2%
Temperature -40℃～99℃
Energy Active energy(Accuracy class:0.5, 1), reactive energy(Accuracy class 2)
Clock ≤0.5s/d
Energy pulse output 1 active optocoupler output, 1 reactive optocoupler
output
Switching output 1 Switching output
Switching input 1 optocoupler input
Width of pulse 80±20ms
Pulse constant 6400imp/kWh,400imp/kWh (Correspond with the basic current)
Interface and communication RS485: Modbus RTU
Range of communication address Modbus RTU:1~ 247;
Baud rate 1200bps~19200bps
Relative temperature -25℃~+55℃
Relative humidity ≤95℅(No condensation)

Features of Acrel ADL3000-E 3-Phase Multi-Function AC Din Rail Meter
01
It can integrate common power parameter measurement and power measurement and
assessment management, and provide various power data statistics for the last
48 months;

02
It has 2~31 sub-harmonic and total harmonic content detection, with switch
input and switch output to realize "remote signal" and "remote control"
functions, and has alarm output;

03
It has RS485 communication interface, which can choose MODBUS-RTU or DL/T645
protocol.
