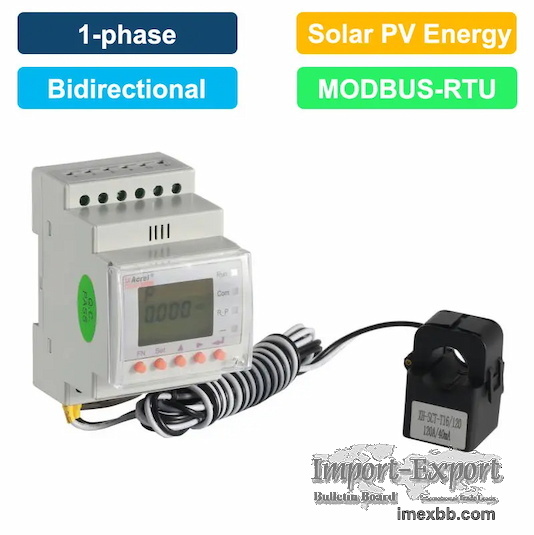

ACREL ACR10R-D16TE PV INVERTER METER WITH POWER MONITORING

ACR10R-D16TE PV inverter meter with power monitoring is suitable for energy-
saving renovation projects in high-energy-consuming industries such as
smelting, steel, electric welding, and semiconductors. It is also suitable for
power monitoring and power demand-side management of distributed photovoltaic
grid-connected cabinets. It integrates the measurement of all power parameters
(such as single-phase current, voltage, active power, reactive power, apparent
power, frequency, power factor), as well as power monitoring and assessment
management.

Specification of Acrel ACR10R D16TE4 PV Inverter Meter With Power Monitoring
Technical parameters Indicators
Input Grid Single-phase
Frequency 45～65Hz
Voltage Rated voltage: AC 100V, 400V
Overload: 1.2 times the rated voltage(continuous); 2 times the
rated voltage lasting for 1 second
Power consumption: less than 0.2VA
Current Rated current: 10A，20A，40A，80A，120A，200A etc. (for details
see product specifications)
Overload: 1.2 times the rated current(continuous);10 times the
rated current lasting for 1 second
Power consumption: less than 0.2VA
Output Communication RS485 interface, Modbus-RTU
Display LCD
Measurement precision Voltage: 0.2 level, current, power Active energy: 0.5
level,0.01Hz frequency, Reactive energy: 1 level
Power supply AC85～265V or DC100～350V; power consumption ≤10VA
Safety Power frequency withstands voltage AC2kV 1 min between power
supply // current input//voltage input and communication
AC2kV 1 min between each pair of combinations among power
supply, current input, and voltage input.
Insulating resistor Input, output terminal to housing >100MΩ
Environment Working temperature: -10℃～+55℃;storage temperature: -20℃～
+70℃
Relative humidity:5%～95%，non-condensing; altitude:≤2500m

Features of ACR10R-D16TE PV Inverter Meter With Power Monitoring
01
It has the characteristics of no need to disassemble the busbar once, simple
and convenient wiring, safe construction, saving transformation costs and
improving efficiency for users;

02
It has a variety of peripheral interface functions for users to choose: it has
RS485 communication interface, using MODBUS-RTU protocol to meet the needs of
communication network management;

03
With switch input and relay output, it can realize the functions of "remote
signaling" and "remote control" of circuit breaker switch. It adopts LCD
display interface, and realizes parameter setting and control through panel
buttons, which is very suitable for real-time power monitoring system.
