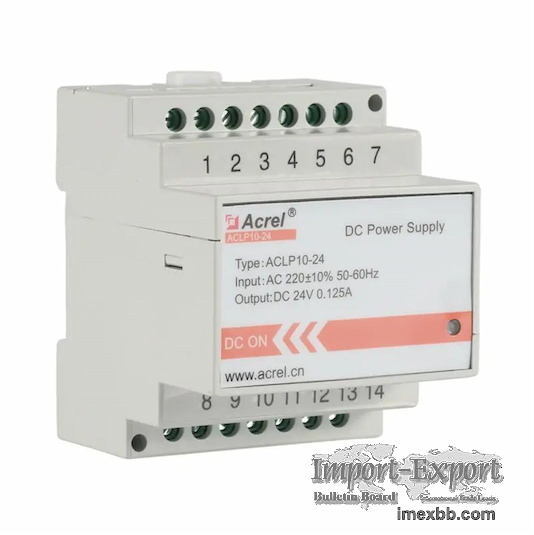

ACREL ACLP10-24 AUXILIARY POWER SUPPLY

ACLP10-24 is a dedicated DC voltage regulator module for instruments, which
uses a completely isolated linear transformer. It has the characteristics of
stable output voltage, small ripple, high withstand voltage level, etc., and
has a power-on indication function. The module is installed on a standard guide
rail, and can be installed on the same guide din rail as the insulation
monitor, which is convenient for installation.

Specification of ACLP10-24 DC Auxiliary Power Supply
Input voltage AC 220V（±10%)
Frequency 50/60Hz
Power 3W
Output voltage DC 24V±5%
Voltage regulation ≤30%
Temperature rise ≤20℃
Withstand voltage 4000V AC/Min

Features of ACLP10-24 Auxiliary Power Supply
01
It adopts an isolated linear transformer, which has the characteristics of
strong anti-interference ability and small ripple;

02
It can input AC 220V, output DC 24V, and the maximum output power is 3W;

03
It can be used to provide DC 24V power supply for AID series alarm and display
instruments and other instruments.

As a power meter manufacturer, we can offer sorts of related products for sale,
if you have needs, please contact us.

Minimum Order: 1 pieces
