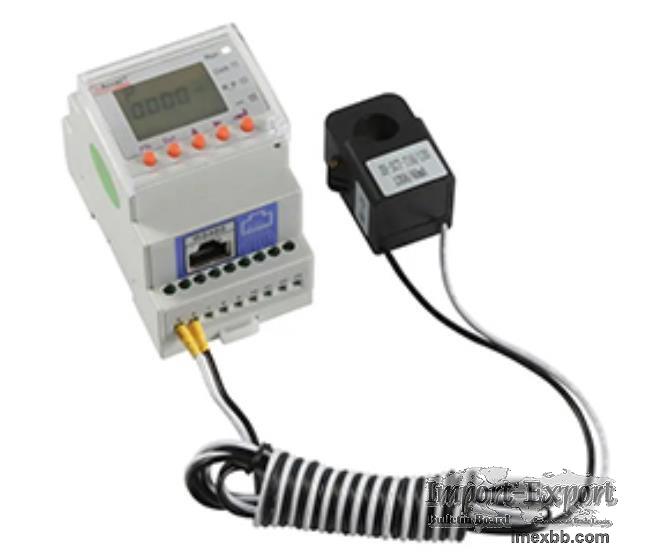

ACR10R-D SERIES PV/SOLAR INVERTER ENERGY METER

ACR10R-D Series PV/Solar Inverter Energy Meter is divided into single-phase and
three-phase. It is equipped with 485 MODBUS-RTU protocol as standard, with
remote signaling and remote control functions, LCD screen display, and panel
button operation to switch various parameter interfaces. According to different
currents,current transformers with different apertures are equipped to meet
different needs. It integrates the measurement of all power parameters, multi-
rate power metering, harmonic analysis power monitoring and assessment
management. It is widely used in the field of new energy, realizes photovoltaic
metering, and is suitable for a variety of high energy consumption industry
transformation projects.

Types of PV/Solar Grid Tie Inverter Smart Meter
ACR10R-D16TE PV Inverter Meter With Power Monitoring
ACR10R-DxxTEx Bidirectional Three-phase Reflux Monitoring Energy Meter

What are the Applications of the ACR10R-D PV/Solar Inverter Smart Meter?
At present, grid companies usually require photovoltaic grid-connected systems
to be non-reverse current power generation systems, that is, the electricity
generated by photovoltaic grid-connected systems is consumed by local loads,
and excess electricity is not allowed to be reversely transmitted to the upper
grid through low-voltage distribution transformers. In the grid-connected power
generation system, because the external environment is constantly changing, in
order to prevent reverse power generation of the photovoltaic grid-connected
system, the system needs to perform reverse current detection, and adjust the
power generation of the system by monitoring the voltage and current signals on
the low-voltage outlet side of the distribution transformer in real time , so
as to achieve the anti-backflow function of the photovoltaic grid-connected
system.

ACR10R series meters, as the key components of anti-backflow detection, adopt
high-performance MCU and high-precision metering chips to realize real-time
detection of voltage, current, power and electric energy. The above data
refresh time is as fast as 250ms, which can meet the control real-time
requirements in the inverter anti-backflow detection. The inverter performs
real-time power adjustment by reading the power magnitude and direction of the
ACR10R series meters in real time, and achieves the anti-backflow detection
function.

What are the Advantages of ACR10R-D Series PV/Solar Inverter Energy Meter?

ACR10R-D Series PV/Solar Inverter Energy Meter is suitable for energy-saving
renovation projects in high-energy-consuming industries such as smelting,
steel, electric welding, and semiconductors. It is also suitable for
applications such as power monitoring and power demand-side management of
distributed photovoltaic grid-connected cabinets. It has the characteristics of
no need to disassemble the busbar once, simple and convenient wiring, safe
construction, saving transformation costs for users, and improving efficiency.
It integrates the measurement of all power parameters (such as single-phase or
three-phase current, voltage, active power, reactive power, apparent power,
frequency, power factor), as well as power monitoring and assessment
management.

As one of power meter manufacturers, we can offer sorts of related products for
sale, anything you need, please contact us.

Minimum Order: 1 pieces
