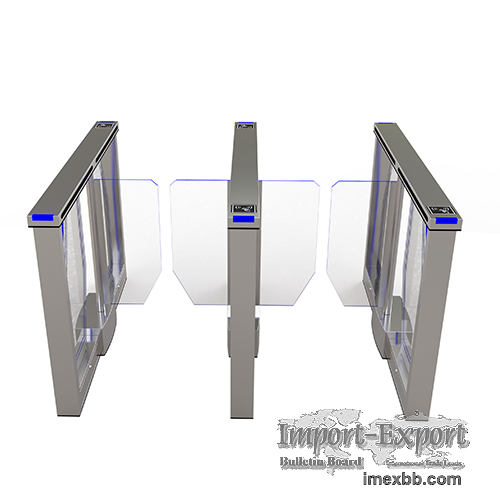

Access Control Turnstile Swing Barrier JDBZ-24

Slim access control turnstile swing barrier, swing barrier turnstile access control system is an ideal crownd control solution for disabled and trolley access

Access control turnstile swing barrier JDBZ-24 adopts reliable advanced brushless DC motor ensuring stable operation with low noise, and DC dynamic coding control technology for guranting silent control and gate stability in variable speed movement. Swing barrier turnstile access control system JDBZ-24 offers multiple operational modes including controlled passage, free passage and visitor, by which pedestrian traffic will be efficiently managed in different situations. The conbination of a fast throughput, superior barrier deterrence and optical tailgate detection enables swing barrier optical turnstile JDBZ-24 compatible with any upscale business or institutional environment.

Access control turnstile swing barrierJDBZ-24 offeres bi-directional entry control in conjunction with access control device with dry contact output, and automatically open to release the passage for free access in case of power failure or in an emergency. Becausee of its elegent and stylish design as well as fast throughput, Access control swing barrier turnstile JDBZ-24 is used widely to various applications such as company foyers, data centers, government buildings and fitness centers.

Access Control Turnstile Swing Barrier Features
1. Smooth and fast opening of barriers
2. Solution for disabled and trolley access
3. Free egress in emergencies or loss of power
4. Quick and precise panel movement and alignment
5. Motorized panels open quickly and smoothly away from the user
6. Slim cabinet allows optical turnstile use in compact spaces
7. Upscale look suitable for any premium lobby
8. Run more smoothly and stop quickly after being blocked
9. Streamlined design with a more modern aesthetic
10. Adopt more reasonable electric control and layout to improve the protection level

Access Control Turnstile Swing Barrier Applications
Subway
Large venues
Stadium
Commercial buildings
Fitness center

Access Control Turnstile Swing Barrier Parameters
Housing Material: #304 stainless sheet
Dimension: 1500 x 160 x 980mm
Power Supply: AC220V / AC110V, 50/ 60 Hz
Channel Width: 600~900mm
Drive Motor: DC 24V brushless motor
Pass Speed: 30 ~35 persons per minute
Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction: Bi-directional
Communication interface: RS485
Gate open when power failure: Yes
Open Time: 0.2 second
Life Cycle: 3 million times
Working Temperature: -30°C~+70°C
Working Environments: Indoor, outdoor (with shelter)

FAQs
What is an access control turnstile swing barrier ?
Access control turnstile swing barrier is a classic type of waist optical touchless turnstile combining the security of a physical barrier turnstile with the sophistication of optical beam detection to prevent tailgating and unauthorized entry with ease. Swing turnstile gate is designed with sleek styling and modern appearance, and such modern optical turnstile blends right in and complements its surroundings seamlessly with its included illumination packages and sleek, modern styling. Access control swing barrier turnstile usually comes with slim size and very compact footprint by which solves the issue of introducing security and safety into small and valuable areas of real estate spaces. On the other hand, optical swing barrier turnstiles are equipped with standard interfaces to be integrated various access control systems to achieve multipl recognition ways.

How does an access control turnstile swing barrier works?
Access control turnstile swing barrier is an efficient and effective crowd management designed to control pedestrians entering or exiting restricted areas, usually under surveillance, in low security situations. Swing arm optical turnstile provides bi-directional access in conjunction with a facility access control system. When enter, pedestrians need to present a valid credential which opens the turnstile’s motorized barriers in the requested directions, allowing a single passage at one time. If an unauthorized pedestrian attempts to tailgate on a valid entry, or attempts to enter without authorization, the integrated sensors recognize the illegal passage attempt and sound an alarm, and deny the access. In case of power failure or an emergency, the access control swing barrier turnstile will relase their swings for free access.

Access control turnstile swing barrier types
According to the difference of drive motor, access control turnstile swing barriers are divided into
Brush motor access control turnstile swing barrier: uses DC24V brush motor, featuring cost saving, simple structure. relatively simple in speed control.
Brushless motor access control turnstile swing barrier: uses DC24V brushless motor, featuring no mechanical friction, low running noise, long life span, higher rotation speed, higher power conversion efficiency, and more energy saving than brush motor swing barrier gate
The cost & price of brushless motor access control turnstile swing barrier is higher than brush motor type ones.

What are the advantages of access control turnstile swing barrier?
1. Access control turnstile swing barrier is supplied with multiple physical barrier height and lane widths providing easy access to the disabled, wheelchairs, and people with large objects or deliveries, meeting both accessibility and security requirements.
2. Automatic swing barrier turnstile provides fast throughput to achieve fast, effective and covinient crowd control management
3. Optical swing turnstile comes with small footprint, well suit with compact areas
4. Access control swing barrier turnstile is supplied with sleek and modern designs blending into surrounding aesthetics
5. Swing barrier turnstile access control guides the pedestrians by switches, light information, and combined obstacles to ensure only one passenger can pass at a time.

Access control turnstile swing barrier applications
Access control turnstile swing barrier provides fast throught and comes with sleek design, which enable them to be used for upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere else where autonomous entry and aesthetics are important

Minimum Order: 2 sets
