AC Type Vacuum Suction Lifter

The electric type of vacuum suction device can be applied in feeding and blanking
of the glass, sheet metal, marble, etc. material.

The maximum weight capacity can be 2500KGS.

We will ODM the most suitable sheet metal grip vacuum lifting equipment for you
that ensure can use for almost 10 years without problem.

Easy for handle and operate, less humanity, less cost and high efficiency.

Panel Vacuum Lifter / Vacuum Suction Lifting Machine
For 500kg or below, we apply with pneumatic type, which apply with pure pneumatic
system, no need to connect electricity, no charge, pneumatic lifting and pneumatic
adsorption. For 500KG or above, we apply the electric type which is more safe and
durable use

We adopting German Becker large-flow vacuum pump with extremely large flow and
strong suction, which is safe and reliable, The vacuum pads we adopt high strength
wear resistant acrylonitrile-butadiene rubber which with longer quality guarante
period for 18 monthes

The suction cup is made of cast aluminum with one time high pressure die casting
molding, which is light weight, high strength, detachable suction cup rubber, easy
to replace environmental friendly.

Diverse Lifting Equipment for Meeting Your Needs
Three types to be designed as per your acutal needs, pneumatic type, electric type
or battery type. For 500kg or below, we apply with pneumatic type, which apply
with pure pneumatic system, no need to connect electricity, no charge, pneumatic
lifting and pneumatic adsorption. For 500KG or above, we apply the electric type
which is more safe and durable use.

Customerized size and lifting solutions, The pads quantity and size and vacuum
pads position etc. details according to your actual use. Sucker position can be
adjusted to meet size changes of different plates.

For some sheet with oil or uneven surface, especially for thin metal plates, our
sucker device with special ball head design which can adsorb the material in
uneven condition. And if the material with oil, actually it is better for our
rubber have better air tightness.

Folk job also available.

Special Designs for Ensure Safty
Equiped with check valve and large capacity accumulator, when in the accidental
power failure, the workpiece can still remain in the sucker position for 5-30
minutes for your handling.

Vacuum leak alarm system, which can ensure that the equipment works safely above
the standard vacuum.

Special ball head design for our vacuum cups which can adsorb the material in
uneven condition. And if the material with oil, actually it is better for our
rubber have better air tightness.

For Vacuum Pads design, Normally we use pads with 2 sizes, one is Diameters 300mm,
one is diameters 230mm, diameters 300mm can load 200kgs/pcs, and Diameters 230mm
can load 100kgs, if the weight is 1000kgs, so we need at least 5 pcs of the
Diamters of 300mm, normally will use 6pcs. For each device, we will consider with
some extra capacity to make sure the safety to use.

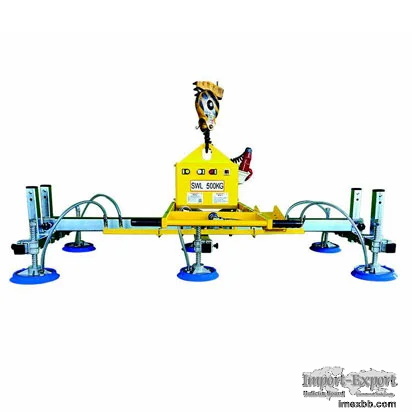

Parameters and Technical Details of Our Portable Vacuum Lifter

Now the price of woods vacuum lifter is reasonable, if you have needs, please
contact us.

As one of metal laser cutter suppliers, we will do our best to meet all the needs
of customers.

Minimum Order: 3000 sets
