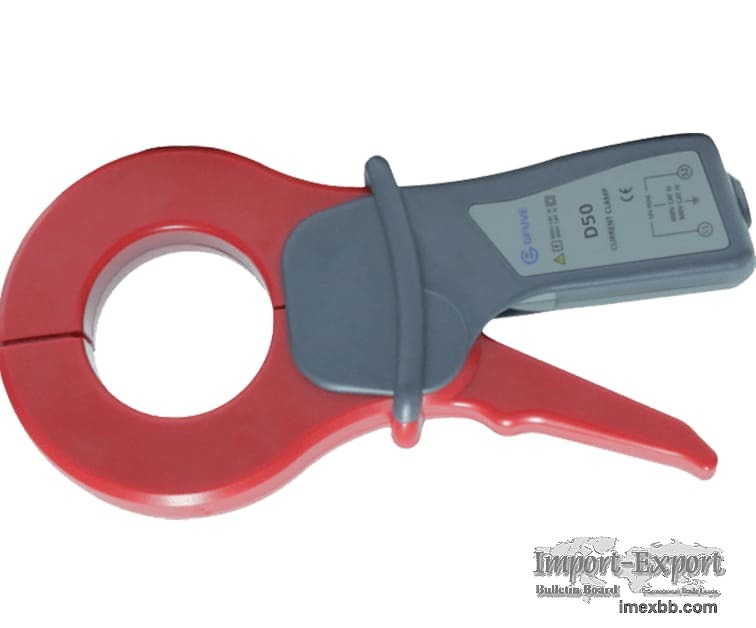

AC/DC 1000A 1mV/A 10mV/A Clamp on Current Probe D50 GFUVE 0.1% Linearity

The round jaw design on the D50 series hall effect current clamp along with the
high content permalloy core makes them well suited for power quality applications
where high linearity and low phase shift along with wide frequency are important
from 10Hz to 200kHz. Measurement range is 0 to 500A or 0 to 1000A AC/DC. It
designed for oscilloscopes, power quality analyzer, waveform displaying
instruments, and other frequency sensitive displaying instruments with BNC inputs.
The Model D50 AC/DC hall effect current clamp is a portable 500A/1000Arms current
probe with insulated BNC output cable that can accurately measure AC or DC current
waveforms. The unit has proportional 1V or 2V output for direct readings on
oscilloscopes from DC to 1MHz at -3dB. The D50 is power by a rechargeable
multimeter battery or from a 5V or 9 V DC power signal cable. It is the perfect
tool for most of the waveform displaying instruments.

Electrical parameters
Ratio: 1000: 1 , 2000:1 (customized)
Accuracy class: 0.2%, 0.5%, 1%, 2%
Primary current: 0 - 500A or 0-1000A AC/DC
Signal output: 1mV/A, 10mV/A
Secondary voltage: 0 - 1V or 0 - 2V AC/DC
Max. Cont. Input current: 1200A AC/DC
Load capacity: ≤20Ω, standard 4Ω
Over voltage category: CAT III 600V
Linearity: 0.1%
Frequency range: 10Hz-1MHz
Frequency response time: ≤10us
Phase Shift at 50/60Hz: ±1°
Dielectric strength: 3KV 50Hz/60Hz at 1minute
Temperature range: -40°C to +55°C
Output: 2.5 meter cable with D01 or BNC connector
Max. voltage not insulated conductors: 720 V
Power supply: 5V or 9V DC
Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installation: clamp type
Range: 10A, 100A, 1000A optional
Output mode: lead output(2.5m)
Pollution Degree: 2
Protection: IP40
Connector: BNC, 4mm banana, signal cable(4 cores),customized

Mechanical parameters
Dimensions (L x W x H) (mm): 105 x 218 x 30
Weight (g): 650
Holding wire diameter (mm): φ52
Max. jaw opening (mm): 52
Jaw color: Red & Grey
Material: PC+ABS, UL94 V0

Minimum Order: 3 sets
