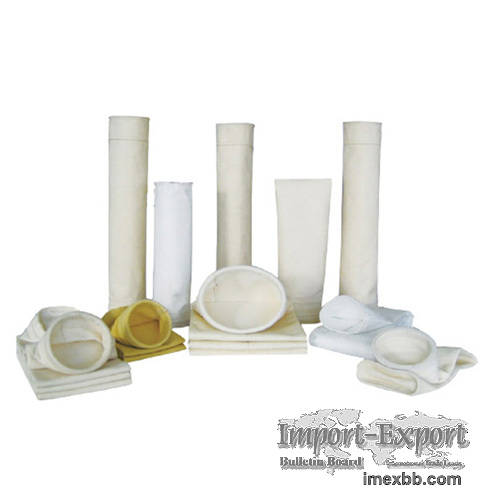

ABP Filter Bag

Each ABP filter bag model with efficiencies over 99% provides cost-effective
filtration solutions for demanding applications.

● Customized service available

● Silicone Free

● Melt-blown filtration media in polypropylene provides highly effective
particle removal

● Multi-layered progressive structure provides excellent performance in
filtering soft particles

● ABP filter bag provides a broad range of chemical compatibility, and more
than 99% filtration efficiency enables broad applications throughout the
chemical industry


Each ABP filter bag model with efficiencies over 99% provides cost-effective
filtration solutions for demanding applications.

Material: Melt-blown

Efficiency: High

Capacity: Standard



Core features
1. Inside-Outside Flow Configuration effectively captures contaminants on the
inside

2. Highly efficient melt-blown filter material in polypropylene with graded
density profiles to maximize dirt-holding capacity and prolong service life

3. Manufacturing processes do not include the use of silicone or adhesives
for greater purity of filtered media

4. Spunbond polypropylene cover layer virtually eliminates fiber migration

5. Seal ring provides a flexible, chemically resistant seal that adapts to
any bag filter housing

6. Low-cost unit bags are collapsible for easy handling

7. Material can handle viscous fluids

8. Welded seams and thermally treated exterior surfaces for control of fibre
migration



Key ABP Applications:
Beverage

Fine particle removal in parts cleaning

Activated carbon removal in process systems

Final filtration of vinegar

Lacquers

Hydraulic oils and lubricants



Consistent Filtration
We use welded Side Seams to form the bag and secure the sealing ring, because
there are no sewn holes, there is no particle bypass through the seam. Media
migration is also controlled through thermal treatment of the exterior
surface, which prevents material fibres from migrating into the clean,
filtered process media.

We then use state-of-the-art procedures to weld the seams properly and affix
the media to the collar and form a complete, cohesive filter with no holes
from sewing.





Plastic or Metal Ring
Proper sealing of the bag in the filter housing is necessary for the
prevention of fluid bypass and subsequent contamination of the downstream
fluid. All of our Polyethylene and Polyester Filter Bags are offered in both
plastic and metal ring sealing collar versions that will properly seal onto
most filter bag manufacturers' housings.



Emails: sales@ubofilter.com

Tel/WhatsaApp: 86-18032153916

Minimum Order: 100 sets
