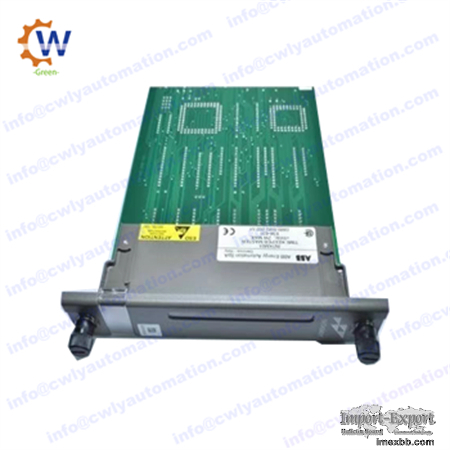

ABB Bailey Analog Input Module IMASI13

ABB Bailey Analog Input Module IMASI13

Monitoring process variables such as temperature, pressure, flow, and level
Interfacing with sensors and transmitters
Data acquisition and logging
Industrial automation tasks

Manufacturers: ABB, Bailey
Model(s):ABB Bailey Infi 90, ABB Bailey Infi 90 and Net 90
Product No. : IMASI13
Product Type : Analog Input Module
Power requirements, Operating voltage : 5 VDC at 500 mA typical, maximum 750 mA
Overvoltage category (IEC 61010-1)

I for circuit above 150V
II for circuit below 150V
Analog input channels : 16 independently configured channels

Thermocouples
Type E, J, K, L, N (14 AWG), N (28 AWG), R, S, T, U
Chinese type E and Chinese type S
3-wire RTD

Please contact me get more information
Email:Mia@cwlyautomation.com
VK/ , Whatsapp/Telegram:+8613667120925
Website: www.cwlyautomation.com

100 O platinum: U.S. Lab. Standard
100 O platinum: U.S. Industry Standard
100 O platinum: European Standard
120 O nickel
10 O copper
Chinese 53 O copper
Millivolt : -100 mV to +100 mV, 0 to 100 mV
High level
1 to 5 VDC, 0 to 5 VDC, 0 to 10 VDC
-10 VDC to +10 VDC, or user specified range
within -10 VDC and +10 VDC
Current : 4 to 20 mA, system or external power
Ambient temperature : 0 to 70 C (32 to 158 F)
Relative humidity
5% to 95% up to 55 C (131 F) (noncondensing)
5% to 45% at 70 C (158 F) (noncondensing)
Pollution degree: 1
Altitude : Sea level to 3 km (1.86 miles)
Air quality : Noncorrosive
Weight : 0.91 Kg
Shipping Weight : 2 Kg
Estimated Shipping Size: Dimensions: 7.0" x 2.0" x 13.0"
(17.8 cm x 5.1 cm x 33.0 cm)

Catalog Description: IMASI13, Analog Input Module
Alternate Part Numbers: YIMASI13, RIMASI13, PIMASI13
Common Typographical Errors: IMASI-13, IMASII3, IMAS113, 1MA5113, 1MA5II3, IMA51I3

Minimum Order: 1 sets
