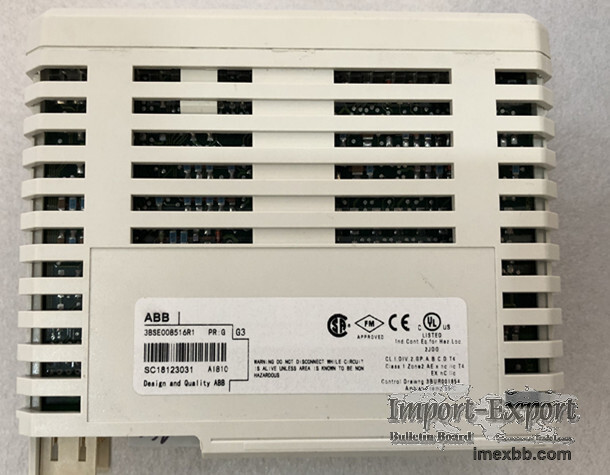

ABB 3BSE008516R1 Input Module Brand New

The analog input module is a device that collects the remote field analog
signal to the computer. It uses RS-485 bus as the data communication line to
provide the function of analog to 485. It can input the analog to the module at
the same time and transmit it to the computer through RS-485 bus.



Since RS-485 interface is adopted as the communication interface, it can
combine multiple modules to transmit more channels of analog signals, and can
be configured dispersedly on 485 lines, distinguished by address code, and can
be directly connected to the configuration software of Modbus RTU protocol.

Functional features

1. Collect multi-channel analog input, adopt industrial wiring terminal, and
support guide rail installation.

2. The 485 interface input is connected with the computer, and the 485
interface provides photoelectric isolation.

3. Modbus RTU communication protocol is adopted to facilitate customers to
unify to the upper computer management platform.

4. The analog module can be used in cascade through 485 interface, which
facilitates the expansion of the system.

technical parameter

1. Hardware configuration: 9-way di / PI, 8-way AI, 5-way do, 3-way serial
port.

2. Storage capacity: 4m.

3. Communication protocol: Standard MODBUS-RTU protocol; Other communication
protocols can be embedded.

4. Power supply: 10V ~ 30V DC.

5. Working environment: temperature: - 40 ~ + 85 ℃; Humidity: ≤ 95%.

6. Installation method: disc mounted.

7. Overall dimension: 120x120x95mm.

Minimum Order: 1 pieces
