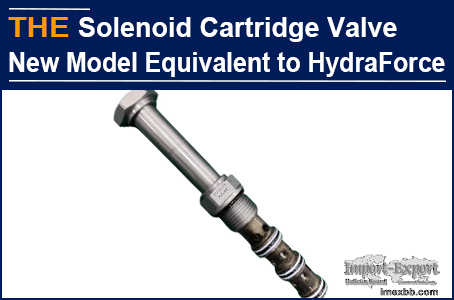

AAK Solenoid Cartridge Valve Equivalent to HydraForce SV12-41

Every Monday, AAK plans to summarize and publish the newly developed Solenoid
Cartridge Valves, Hydraulic Cartridge Valves, Hydraulic Valve Blocks, Hydraulic
Manifolds in our news information page.

Today, we are introducing the E-SV12-41 Solenoid Cartridge Valve, 4 Port, 2
Position, Spool type, equivalent to HydraForce SV12-41.

AAK E-SV12-41 Solenoid Cartridge Valve 2 Key Selling Points:

1.Maximum internal leakage 410 ml/min (25 in³/min), there is not more than 3
hydraulic cartridge valve manufacturers in Ningbo that can meet this standard
till now.

2.Manufacturing quality benchmarking HydraForce, AAK E-SV12-41 Solenoid
Cartridge Valve has a cycle life of 1 million cycles, twice that of its peers
in Ningbo.

AAK E-SV12-41 Solenoid Cartridge Valve, main technical parameters:
Max. Operating Pressure: 241 bar (3500 psi)
Flow: See PRESSURE DROP VS. FLOW graph of E-SV12-41
Internal Leakage: 410 ml/min (25 in³/min) max. at 207 bar (3000 psi)
Temperature: - 40 to 120 °C (with Standard Buna N seals)
Cavity: VC12-4

AAK E-SV12-41 Solenoid Cartridge Valve has been ordered by 3 customers,
including a listed company in Canada, one of the top 3 customers in the
Hydraulic lift industry in North America. You can also have a try.
