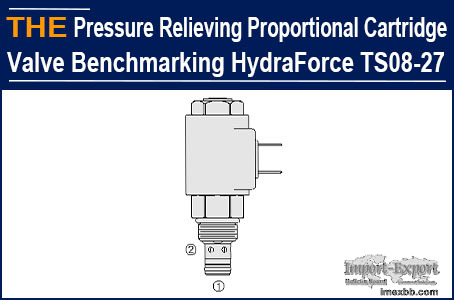

AAK Proportional Cartridge Valve Benchmarking HydraForce TS08-27

Recently, we launched a hydraulic proportional cartridge valve equivalent to
HydraForce standard part TS08-27. It is a pilot operated spool type,
proportional pressure relieving valve. The regulated pressure is inversely
proportional to the input electrical current.

Last February in 2022, a hydraulic cartridge valve customer in Russian found
AAK when looking for a hydraulic cartridge valve manufacturer in China on
Google. He sent us an inquiry for 20 pcs of HydraForce Pressure Relieving
Proportional Cartridge Valve TS08-27. For this model, very few cartridge valve
manufacturers in Ningbo have existing production procedures. At that time, AAK
was still in developing it for a listed company in Canada. We told the Russian
customer that after the development is finished, AAK still needs at least 1
year to test the function and performance. We will keep you informed when this
Pressure Relieving Proportional Cartridge Valve passed the 1 year of durability
testing.

This June, we were very happy to learn from the Canadian customer that AAK
Pressure Relieving Proportional Cartridge Valve E-TS08-27 has passed their
internal testing after 1 year of use, they are preparing for the 2024 buy plan
and will send us the official order very soon.

After knowing this, the Russian customer asked us to quote based on an annual
order qty of 500 pcs directly. Today, we received the official PO for it.

AAK hydraulic pressure relieving proportional cartridge valve 2 advantages:
1. Hysteresis per cent ﹤3%, benchmarking HydraForce quality
2. Its service life is 2 times that of its domestic peers

Technical parameters of AAK E-TS08-27 pressure relieving proportional cartridge
valve:
Operating Pressure: 241 bar (3500 psi)
Flow rating: 19 lpm/5 gmp DP = 7.8 bar (113.3 psi) ±10%, Cartridge Only,
flow from Port 1 to Port 2, coil energized.
Maximum pilot flow rate: 0.76 lpm (0.2 gpm)
Hysteresis per cent: ﹤3%
Pressure appreciation: A: 40 psi/gpm; B: 50 psi/gpm; C: 28 psi/gpm
Cavity: 08-2

The newly launched AAK E-TS08-27 pressure relieving proportional cartridge
valve, benchmarking HydraForce TS08-27, has been approved by customer in Canada
after 1 year of testing. You are welcome to try it out.

AAK HYDRAULIC VALVES (659) 2023-08-28
