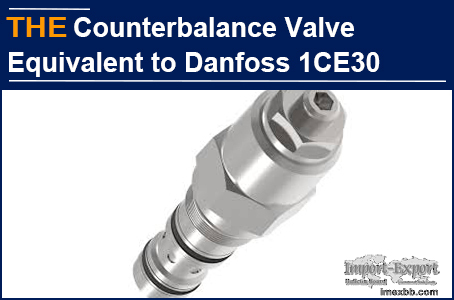

AAK is posting a new model Counterbalance Valve equivalent to Danfoss 1CE30

Today, we’d like to introduce a hydraulic counterbalance valve, equivalent to
Danfoss 1CE30.

This model was developed for a customer in Brazil last July. Besides Brazil,
till now, it has been shipped to Russia and India. Customers are very happy to
have found a supplier with expected quality at a reasonable price.

Here are the advantages of this counterbalance valve:
* Economical and suitable for simple jacks.
* Quick and easy field installation.
* Can be used interchangeably with pilot one-way plugs of similar size.
* The quality of this valve is benchmarking SUN, but price is much cheaper.
* The service life is 2 times that of domestic hydraulic cartridge valve
manufacturers in China

Technical parameters of AAK E-1CE30 Counterbalance Valve:
Rated Pressure: 350 bar (5000 psi)
Rated Flow: 30 L/min (8 US gpm)
Max total relief pressure: 350 bar (5000 psi)
Max recommended load pressure at max setting: 270 bar (3900 psi)
Pilot Ratio: 2.5:1; 5:1; 10:1
Leakage rate: 0.3 ml/min (5 drops/min)
Temperature: - 30℃ ~ + 90℃
Fluids: Mineral-based or synthetics with lubricating properties at viscosities
of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: A6610

AAK E-1CE30 counterbalance valve, equivalent to Danfoss 1CE30, has been
exported to Russia, Brazil and India. You are welcome to try it out.
