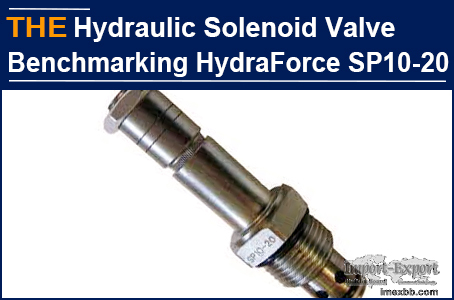

AAK Hydraulic Solenoid Valve Benchmarking HydraForce SP10-20

This Monday, we launched a solenoid valve equivalent to HydraForce standard
part SP10-20.

The features of this solenoid valve:

Continuous-duty rated coil.
Efficient wet-armature construction.
Manual override options.
Optional waterproof E-Coils rated up to IP69K.
Industry common cavity.
Metering option.

The function of this solenoid valve:
A solenoid-operated, 2-way, normally closed, poppet-type, proportional, screw-
in hydraulic cartridge valve, designed for low leakage blocking and load-
holding applications. When de-energized, the sp10-20xxx acts as a check valve,
allowing flow from 1 to 2, while blocking flow from 2 to 1. When energized, the
poppet lifts to open the 2 to 1 flow path.

AAK has received 6 inquiries for this solenoid valve from January to April
2023, with 5 customers placed trial orders. This hydraulic solenoid valve is
not only widely used, but also has multiple functions, especially its good
performance. Although some China hydraulic cartridge valve manufacturers can
produce this hydraulic solenoid valve, and its functions may also be compared
to HydraForce standard part SP10-20, their solenoid valve performance may be a
problem.

AAK hydraulic cartridge solenoid valve 2 advantages:
1. Internal leakage: 5 drops/min, benchmarking against HydraForce
2. Its service life is 2 times that of its peers

Technical parameters of AAK E-SP10-20 Hydraulic Solenoid Cartridge Valve:
Max. Operating Pressure: 250 bar (3625 psi)
Flow: See PRESSURE DROP VS. FLOW graph
Internal Leakage: 5 drops/min max. at 250 bar (3625 psi)
Operating Fluid Temperature: - 40 to 100 °C (with Standard Buna N seals)
Cavity: 10-2

The newly launched AAK E-SP10-20 solenoid valve, benchmarking HydraForce,
within 4 months, received 6 inquiries, and 5 customer trial orders. You can
also try it out.
