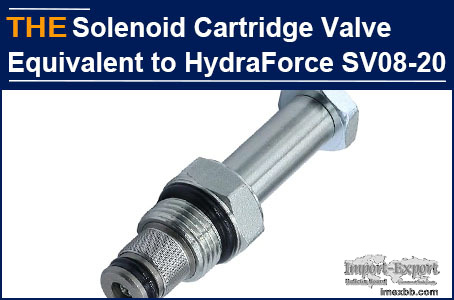

AAK Hydraulic Solenoid Cartridge Valve is equivalent to HydraForce SV08-20.

Recently, we received the repeat order from a customer in the United States for
a hydraulic solenoid cartridge valve equivalent to Hydraforce SV08-20 again.

It is a solenoid-operated, 2-way, normally closed, poppet-type, screw in
hydraulic cartridge valve, with standard and manual override options. This
valve is intended as a blocking or load holding device for low flow circuits
having pull-only manual override requirements for handles or cable linkage.

This is a standard part and commonly used. Till now, AAK hydraulic solenoid
cartridge valve E-SV08-20 has been shipped to several customers in the United
States. Its quality and stability has been approved by these customers. Some of
them repeat the orders 2 – 3 times a year.

The advantages of AAK Hydraulic Solenoid Cartridge Valve E-SV08-20 are:
1. The quality of this valve is benchmarking HydraForce, but price is much
cheaper.
2. The service life is 2 times that of domestic hydraulic cartridge valve
manufacturers in China

Technical parameters of AAK E-SV08-20 Hydraulic Solenoid Cartridge Valve:
Pressure Rating: 207 bar (3000 psi)
Flow Rating: 23 lpm (6 gpm)
Max.Internal Leakage: 0.15 ml/min (3 drops/min) max. at 207 bar (3000 psi)
Temperature: - 40 ℃ ~ + 120 ℃ with Buna N seals
Fluids: Mineral-based or synthetics with lubricating properties at viscosities
of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: VC08-2

AAK E-SV08-20 Hydraulic Solenoid Cartridge Valve, benchmarking HydraForce SV08-
20, its service life is 2 times that of its domestic peers. You are welcome to
give it a try.

AAK HYDRAULIC CARTRIDGE VALVES (818) 2024-10-14

Minimum Order: 1 sets
