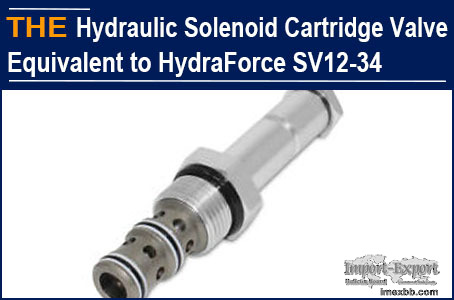

AAK Hydraulic Solenoid Cartridge Valve Equivalent to HydraForce SV12-34

This week, we’d like to introduce a hydraulic solenoid cartridge valve
equivalent to HydraForce SV12-34. It is a solenoid operated, two position,
three way, direct acting spool valve.

Last January in 2022, a customer in Russia found AAK when looking for
a hydraulic cartridge valve manufacturer in China on Google. She sent us
an inquiry for 10 pcs of HydraForce cartridge valve SV12-34, along with
several other HydraForce standard parts. However, AAK did not have existing
programming for SV12-34 at that time and did not quote. Instead, the
customer placed trial order for the other models.

This January in 2023, the customer checked with us again if AAK is willing
to develop SV12-34 as per their original samples. Although they can buy
SV12-34 from other hydraulic cartridge valve manufacturers in China, they do
not trust their quality. Because the quality of the other trial orders
shipped by AAK last year was very satisfying, they want to develop SV12-34
with AAK. In March, the development was finished and delivered.

Last week, we were very happy to learn from the Russian customer that the E-
SV12-34 Solenoid Cartridge Valve developed by AAK is running very smoothly,
the quality is very stable. They are going to ask AAK to develop more and
more new models.

AAK hydraulic solenoid cartridge valve E-SV12-34 two advantages:
1. Pressure Rating 207 bar (3000 psi), benchmarking HydraForce
2. Its service life is 2 times that of its domestic peers

Technical parameters of AAK E-SV12-34 hydraulic solenoid cartridge valve:
Pressure Rating: 207 bar (3000 psi)
Flow Rating: see graph
Max. Internal Leakage: 350 cc/min max. at 207 bar (3000 psi)
Temperature: - 40℃ ~ + 120℃ (Std. Buna N Seals)
Cavity: VC12-3

AAK E-SV12-34 hydraulic solenoid cartridge valve, benchmarking HydraForce
SV12-34, has been approved by customer in Russia. You are welcome to give it
a try.
