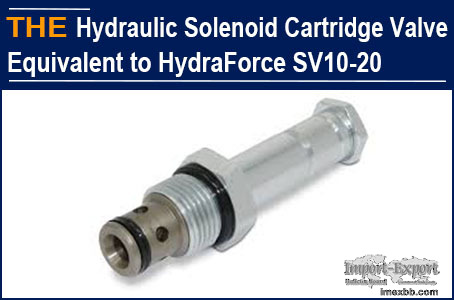

AAK Hydraulic Solenoid Cartridge Valve Equivalent to HydraForce SV10-20

Today, we’d like to introduce a solenoid cartridge valve equivalent to
HydraForce standard part SV10-20. It is a solenoid-operated, 2-way, normally
closed, poppet-type, screw in hydraulic cartridge valve, with standard
(sv10-20) and manual override (mo) options. This valve intended as a
blocking or load holding device for low flow circuits having pull-only
manual override requirements for handles or cable linkage.

The features of this solenoid cartridge valve:

Continuous-duty rated coil.
Hardened seat for long life and low leakage.
Optional coil voltages and terminations.
Efficient wet-armature construction.
Cartridges are voltage interchangeable.
Unitized, molded coil design.
Manual override option.
Optional waterproof E-Coils rated up to IP69K.
Industry common cavity.
Position sensor option.

The function of this solenoid proportional valve:
When de-energized, the SV10-20X acts as a check valve, allowing flow from
port 1 to port 2, while blocking flow from port 2 to port 1. When energized,
the valves poppet lifts to open the port 2 to port 1 flow path, while flow
from port 1 to port 2 is severely restricted.

AAK has received 6 inquiries for this solenoid proportional valve within
only 2 months, from August to October 2023, with 3 customers placed trial
orders. This hydraulic solenoid cartridge valve is not only widely used, but
also has multiple functions, especially its good performance. Although many
hydraulic cartridge valve manufacturers in China can produce this hydraulic
solenoid cartridge valve, and its functions may also be compared to
HydraForce standard part SV10-20, their solenoid cartridge valve performance
may be a problem.

AAK hydraulic cartridge solenoid cartridge valve 2 advantages:
1. Internal leakage: 3 drops/min, benchmarking against HydraForce
2. Its service life is 2 times that of its peers

Technical parameters of AAK E-SV10-20 Hydraulic Solenoid Cartridge Valve:
Max. Operating Pressure: 207 bar (3000 psi)
Flow: See PRESSURE DROP VS. FLOW graph
Internal Leakage: 3 drops/min max. at 207 bar (3000 psi)
Cavity: 10-2

AAK E-SV10-20 solenoid cartridge valve, benchmarking HydraForce, within 2
months, received 6 inquiries, and 3 customer trial orders. You can also try
it out.
