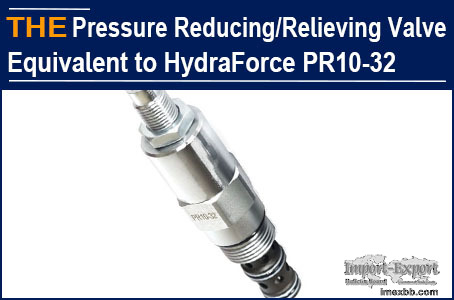

AAK Hydraulic Pressure Reducing Valve Equivalent to HydraForce PR10-32

This week, we’d like to introduce a hydraulic cartridge valve equivalent to
HydraForce PR10-32. It is a screw in, cartridge style, direct acting, spool
type, hydraulic pressure reducing/relieving valve with internal pilot and
internal spring chamber drain. It is designed to act as a pressure regulating
device for secondary circuits. It is intended for use in stable input flow
circuits.

Last January in 2022, a customer in Russia found AAK when looking for
a hydraulic cartridge valve manufacturer in China on Google. She sent us an
inquiry for 10 pcs of HydraForce cartridge valve PR10-32, along with several
other HydraForce standard parts. However, AAK did not have existing programming
for PR10-32 and did not quote. Instead, the customer placed trial order for the
other models.

This January in 2023, the customer checked with us again if AAK is willing to
develop PR10-32 as per their original samples. Although they can buy PR10-32
from other hydraulic cartridge valve manufacturers in China, they do not trust
their quality. Because the quality of the other trial orders shipped by AAK
last year was very satisfying, they want to develop PR10-32 with AAK. In March,
the development was finished and delivered.

Last week, we were very happy to learn from the Russian customer that the E-
PR10-32 Pressure Reducing/Relieving Cartridge Valve developed by AAK is running
very smoothly, the quality is very stable. They are going to ask AAK to develop
more and more new models.

AAK hydraulic pressure reducing/relieving cartridge valve E-PR10-32 two
advantages:
1. Pressure Rating 210 bar (3000 psi), benchmarking HydraForce
2. Its service life is 2 times that of its domestic peers

Technical parameters of AAK E-PR10-32 pressure reducing/relieving cartridge
valve:
Pressure Rating: 207 bar (3000 psi)
Flow Rating: 30.3 lpm (8 gpm)
Max. Internal Leakage: 82 ml/min (5 in³/min) Note: Port 2 to 3 at 207 bar
(3000 psi)
Temperature: - 40℃ ~ + 120℃ (Std. Buna N Seals)
Cavity: 10-3

AAK E-PR10-32 pressure reducing/relieving cartridge valve, benchmarking
HydraForce PR10-32, has been approved by customer in Russia. You are welcome to
give it a try.
