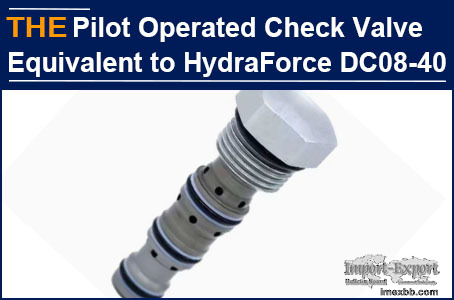

AAK Hydraulic Pilot Operated Check Valve is equivalent to HydraForce DC08-4

Recently, we received inquiries from several foreign customers for our
Hydraulic Pilot Operated Check Valve E-DC08-40.

It is a cartridge style, dual pilot operated check valve for use in blocking or
load holding circuits with general purpose hydraulic fluids. Its flow rating,
operating pressure, function and performance is completely equivalent to
HydraForce DC08-40, and it is also a substitute of Parker CPD084P.

Till now, AAK valve E-DC08-40 has been shipped to customers in Sweden, Germany
and Mexico. Its quality and stability has been approved by these customers.

The advantages of AAK Hydraulic Pilot Operated Check Valve E-DC08-40 are:
1. The quality of this valve is benchmarking HydraForce, but price is much
cheaper.
2. The service life is 2 times that of domestic hydraulic cartridge valve
manufacturers in China

Technical parameters of AAK E-DC08-40 Hydraulic Pilot Operated Check Valve:
Operating Pressure (Inlet): 240 bar (3500 psi)
Rated Flow (Inlet): 19 lpm (5 gpm)
Pilot Ratio: 3:1
Check Spring Bias: 1.7 bar (25 psi)
Leakage: 0.25 ml/min (5 drops/min) max. at 207 bar (3000 psi)
Temperature: - 40 ℃ ~ + 120 ℃ with Buna N seals
Fluids: Mineral-based or synthetics with lubricating properties at viscosities
of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: VC08-4

AAK E-DC08-40 Hydraulic Pilot Operated Check Valve, benchmarking HydraForce
DC08-40, its service life is 2 times that of its domestic peers. You are
welcome to give it a try.
