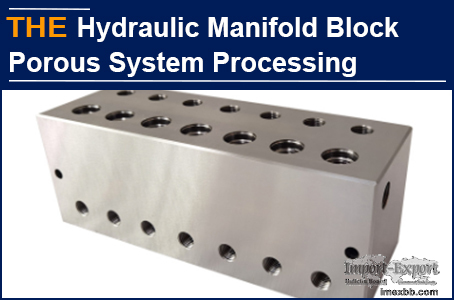

AAK Hydraulic Manifold Block Porous system Processing

Arno comes from England. They have a special hydraulic manifold block, which
includes 13 groups of M32 threaded holes, and all of them are stepped holes. At
the same time, there are cross holes, straight holes, and bypass holes. The
hole size is required to be more than 8. Compared with the hydraulic manifold
blocks with 10 groups of normal threaded straight holes, it is not only complex
in structure, but also 20% higher in precision. Arno knew that it was
difficult, so he arranged 3 hydraulic manifold block manufacturers for
proofing, which lasted 60 days, but all of them failed to meet the standard.
This is a test order of hydraulic manifold block from an old customer. Arno
wants to struggle again. Due to time constraints, he does not dare to use a new
hydraulic manifold block manufacturer. His old hydraulic manifold block
supplier is also unreliable. This makes Arno, who has eight years of
procurement experience, a little overwhelmed.

When Jone introduced Arno to me, I had a hunch that this hydraulic manifold
block was not simple. Because the PO of hydraulic manifold blocks given to me
by Jone is a challenge every time. AAK engineers pondered over the drawing of
hydraulic manifold block sent by Arno, and it is really difficult to process,
with very high precision. There are not only many pore systems, but also many
deep holes, more than 20 groups of Φ3、 Φ4 deep holes, with a length diameter
ratio greater than 25. For M32 threaded holes of stepped holes, the coaxiality
between holes is required to be 0.02mm, and the coaxiality between threads and
holes is required to be 0.045mm. This complex pore system structure is like the
distribution of the nervous system of the human brain. Doctors without more
than 10 years of experience in brain surgery may not be confident to operate on
the operating table.

AAK technical team, after 3 days of internal research and discussion, the plan
has been worked out, and our chief engineer will handle the knife, starting
from the production drawing of the hydraulic manifold block. However, I replied
to Arno that AAK was only 90% sure that the sample of this hydraulic manifold
block was successful, and the cost was not low. Maybe Arno hesitated and didn't
give any reply for 3 days. On the fifth day, AAK received the development fee
paid by him. He mentioned that Jone told him that when AAK said it was 90%
sure, it means that there was basically no problem.

After 20 days, AAK sent 4 hydraulic manifold block samples. 4 weeks after
sending the samples, Arno placed a PO for hydraulic manifold block worth 80,000
US dollars. He also told me that the hydraulic manifold assembled with AAK
hydraulic valve block was successfully debugged, and the customer was very
satisfied. He emphasized that the quality of the batch order must be stable. I
told him that as long as your customer is satisfied with the quality of the
hydraulic manifold block sample, there will be no worry about the quality of
the batch order, because the process and processing methods adopted by AAK
guarantee the stability first:

1. For special hole system processing, AAK follows the principle of small hole
priority, customizes alloy fried dough twist drill tools with large chip
holding groove and good toughness, and solves the problem of small hole system
processing by using the drilling cycle technology in combination with the
processing method of "high speed, snack knife depth, frequent tool withdrawal".

2. For M32 threaded holes, the combination of rough and finish machining is
adopted, and the thread milling cutter is used to replace the alloy boring
cutter used by nearly 90% of hydraulic manifold block manufacturers for
milling, so as to avoid the problem of coaxiality out of tolerance caused by
manual tapping due to tap deflection.

3. AAK has designed a group of coaxiality gauges for measuring the thread hole
system to assist in machining, ensuring the datum requirement of coaxiality of
0.02mm, and further improving the dimensional form and location tolerance
accuracy by nearly 20%.

AAK hydraulic manifold block is not afraid of the pore system like cranial
nerves. Welcome to have a small try!
